Fully-equipped junior electric bike with a 14-inch frame and a powerful Panasonic drive for all-terrain riding! The bike also boasts a suspension fork, hydraulic brakes, and top-shelf components. more
Selected products (fitness trainers) over 165 EUR are covered by an extended warranty of 10 years. And that’s because we are confident in the quality of our products! Extended 10-year warranty also applies to all bicycles Kellys, 4EVER, Devron, DHS, Kreativ, as well as all e-bikes. You can rely on our products. The 10year warranty covers the trainer/bike frame only.

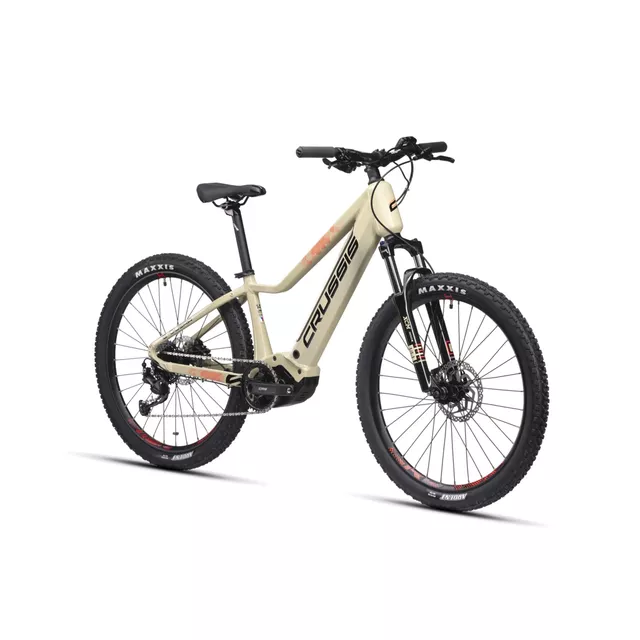

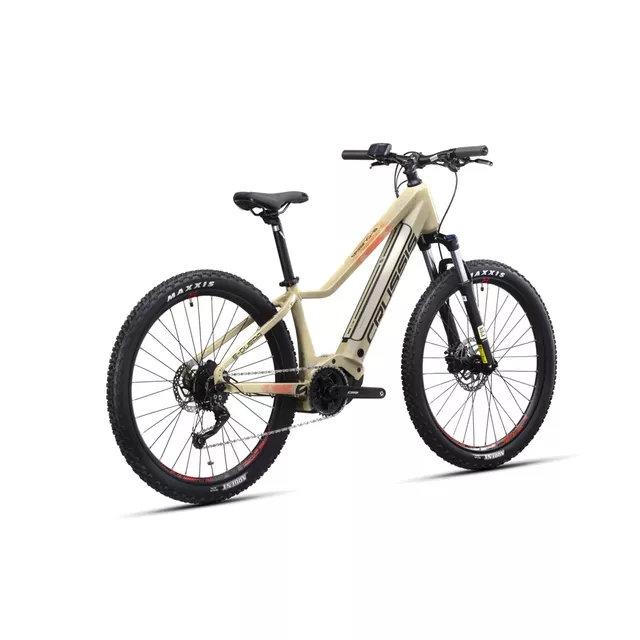

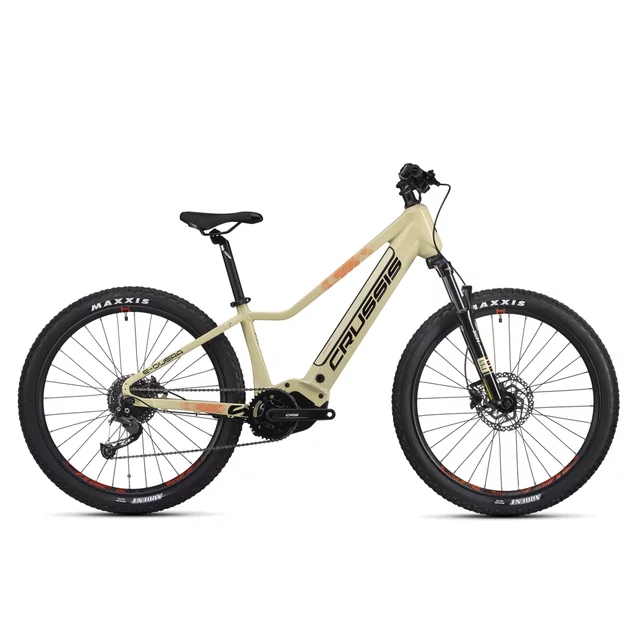

Designed for young bikers looking for adventure, the Junior Mountain E-Bike Crussis e-Guera 6.10 turns every ride into an unforgettable experience filled with joy and freedom. Thanks to the lightweight yet durable aluminum frame and the powerful Panasonic GX Power Plus drive, you’ll always be one step ahead. Boasting a distance range of up to 130 km on a single charge, you can discover new places and go on adventures without having to compromise. The high-quality disc brakes and SHIMANO and MAXXIS components will make sure your ride is not only comfortable but also safe.

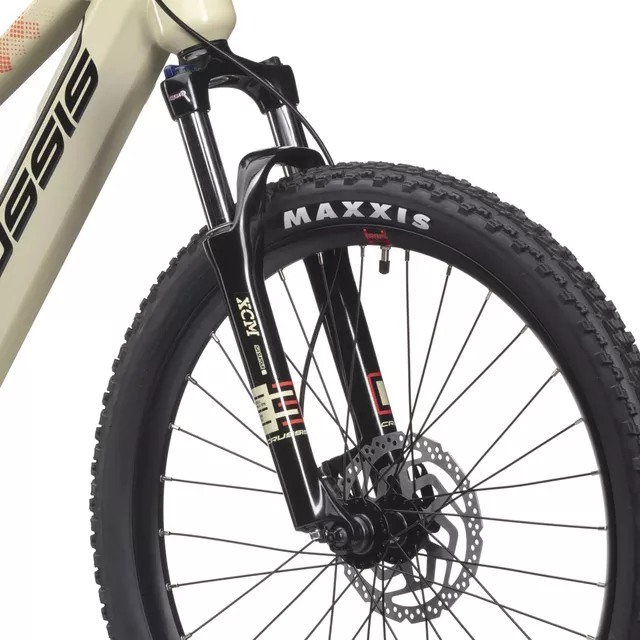

It doesn’t matter whether you’re riding roots, down a rocky hill or on a never-ending dirt road, the SUNTOUR XCM HLO DS suspension fork with a 100mm travel will deal with each and every bumpy section, and with grace. What’s more, if you lock the suspension, the bike will turn into a reliable companion for a fast ride on a paved or gravel road. So, what you’ll get is a comfortable and stable riding experience, regardless of terrain.
The Li-ion 36V/14.5 Ah (522 Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 130 km on a single charge (depending on the trail profile).

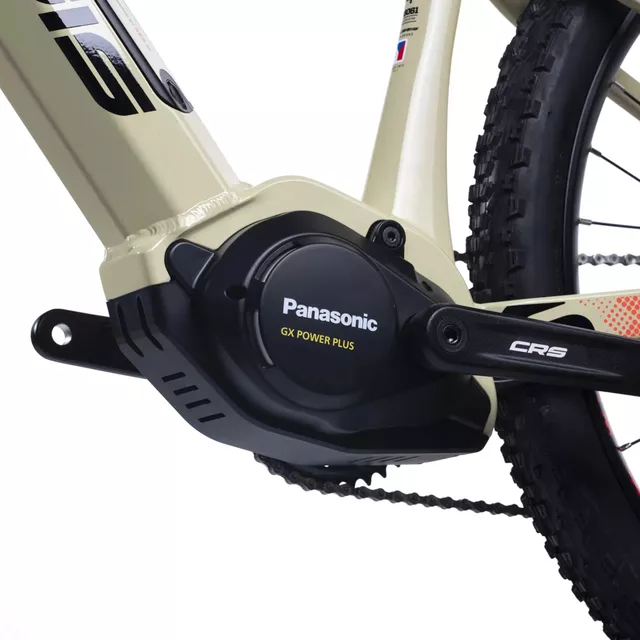

The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.

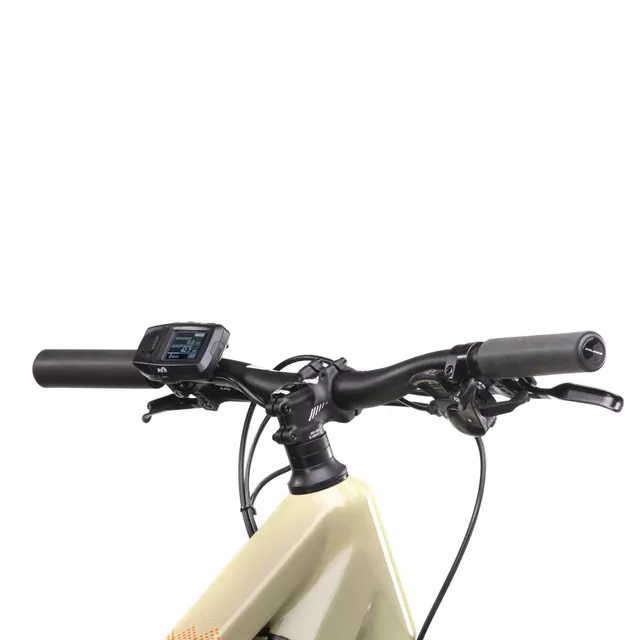

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a micro USB-B port which allows you to charge your mobile device.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
Technical description:
Frame |
Alu 6061 |
Engine |
PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm |
Battery |
LG Li-Ion 36V / 522 Wh (14.5 Ah), removable – can be charged separately |
Charger |
2 A (included) |
Distance range |
Up to 130 km |

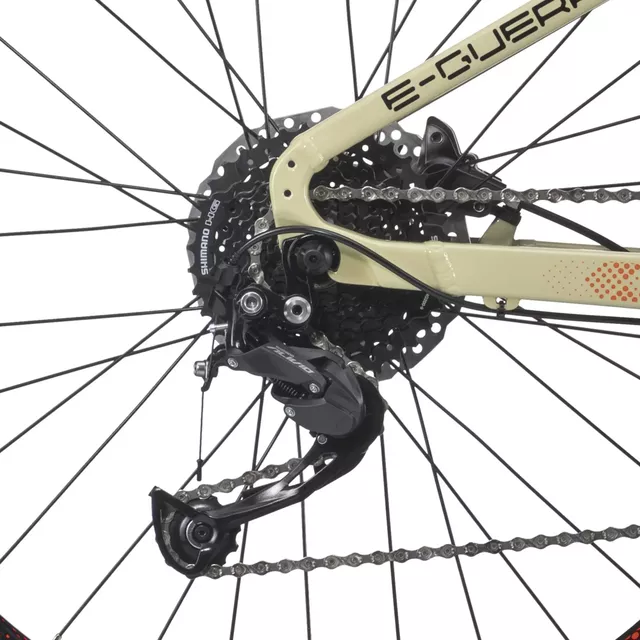

Rear derailleur |
SHIMANO Alivio RD-M3100-SGS, 9 speeds |
Gear shifter |
SHIMANO Alivio SL-M3100, 9 speeds |
Chain |
KMC X9 |
Number of speeds |
1 x 9 |
Cassette |
SHIMANO CS-HG200-9, 9 speeds |
Fork |
SR-Suntour XCM HLO DS 26", 100 mm travel, lockout (fork) |
Front brake |
SHIMANO BR-MT200, hydraulic, rotor 180 mm |
Rear brake |
SHIMANO BR-MT200, hydraulic, rotor 160 mm |
Control panel |
PANASONIC LCD panel, color display |
Tires |
MAXXIS ARDENT 26 x 2.25 |
Rims |
CRUSSIS 26" disc, double-walled, lined, 30 mm |
Hubs |
CRUSSIS disc, wreath bearings, 32D |
Headset |
Semi 1 1/8 |
Stem |
CRUSSIS AL 40 mm, 7-degree angle |
Handlebars |
CRUSSIS AL 31.8 mm, 640 mm width |
Grips |
CRUSSIS 100% silicon |
Pedals |
WELLGO, plastic w/ reflector |
Seatpost |
CRUSSIS w/ lock, 30.9 Ø, 350 mm |
Seat |
Selle ROYAL |
Kickstand ready |
Holes with 40mm spacing on the rear frame |
Rear rack ready |
Yes |
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
Max load capacity |
120 kg (user’s weight + load weight + bike weight) |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Colour | Beige |
---|---|
Battery capacity | 522 Wh |
Capacity | 14.5 Ah |
Voltage | 36 V |
Range | 130 km |
Motor | PANASONIC GX Power Plus |
Drive | Central |
Maximum torque | 75 Nm |
Brakes | Disc |
Disc brake type | hydraulic |
Suspension travel | 100 mm |
Gear shifting type | lever |
Number of speeds | 9 |
Suspension | suspension fork |
Suspension lock | yes |
Frame material | Aluminium |
Wheel size | 26 |
Tire width | 2.25 " |
Designed for seniors | no |
Low-step frame | no |
Type of e-bike | MTB |
Mullet | no |
Folding frame | no |
Telescopic seatpost | no |
Stand | no |
Use | children |
Weight limit (kg) | 120 kg |
Year | 2025 |
