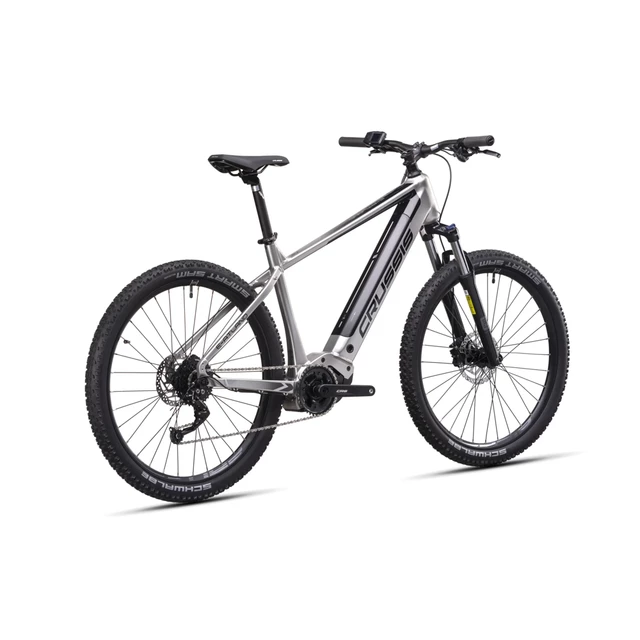

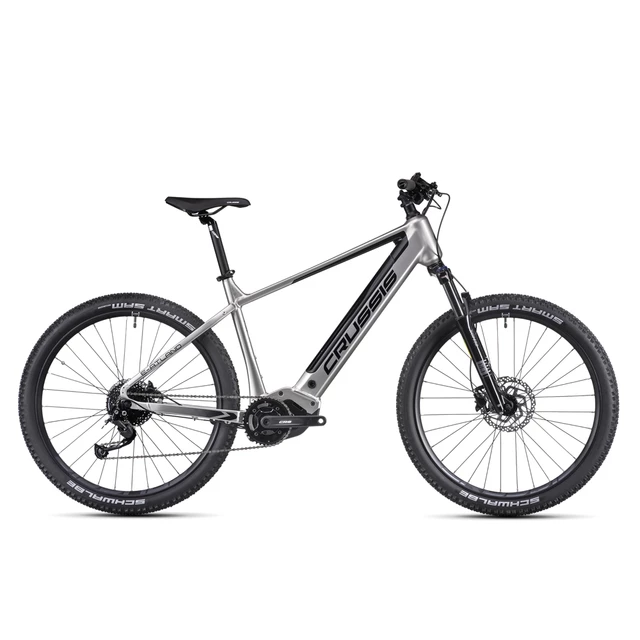

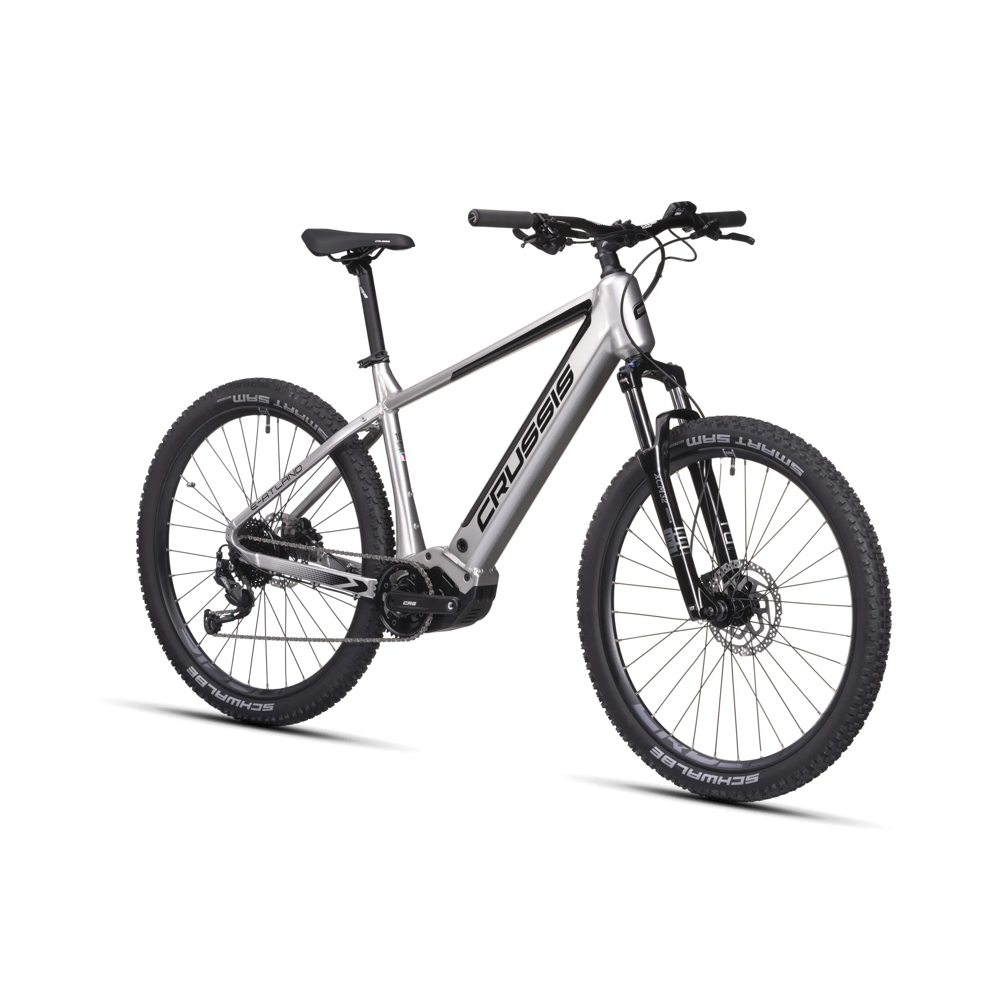

The Mountain E-Bike Crussis e-Atland 7.10 900Wh is an ideal companion for all adventurers looking for a combination of performance, style and practicality. Part of the legendary 7-Series, this mountain e-bike boasts a powerful LG Li-ion battery with a capacity of 900 Wh and a Panasonic GX Power Plus center drive, which give the bike enough juice for up to a whopping 200 km, which means it can take you to the furthermost places. Thanks to the 5-level assistance, which you can easily adjust on the color LCD panel with a practical micro USB-B port for charging your phone, you can tailor your ride to perfection.
The sturdy frame, which is perfectly balanced, and 27.5-inch wheels with high-quality Schwalbe tires provide outstanding traction on any terrain. The hydraulic disc brakes provide superior control and safety, while the Suntour XCM32 NLO DS suspension fork with a 100mm travel can deal with any obstacle, thus ensuring a smooth and comfortable ride even on challenging terrain. This e-bike is not just a vehicle – it’s your ticket to the world of boundless adventures.
Whether you’re riding on an easy bike trail or challenging terrain, the Crussis e-Atland 7.10 won’t let you down. Its reliability, thought-out details, and exceptional distance range make it a perfect companion for everyday riding as well as challenging mountain biking trips. Overcome your limits and discover new horizons with this incredible mountain e-bike!

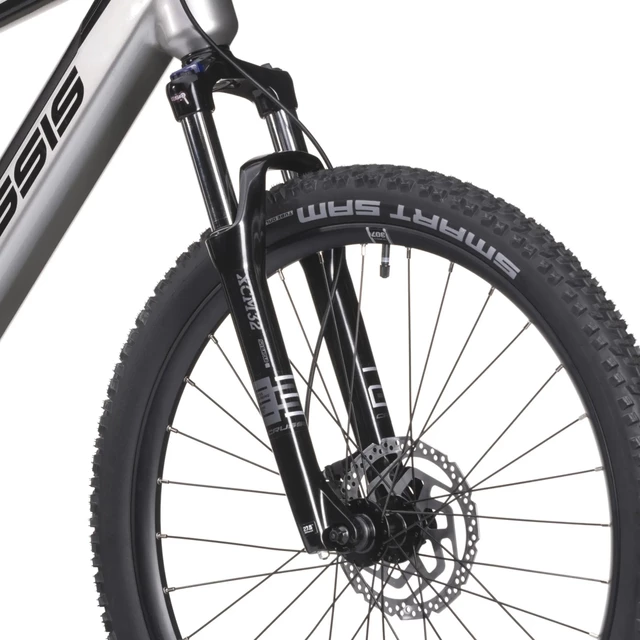

Adjustable Fork
The Mountain E-Bike Crussis e-Atland 7.10 features a Suntour XCM32 NLO DS 27.5” air suspension fork with a 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out at the crown.
The Most Powerful Battery
The LG Li-ion 36V/25 Ah (900 Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 200 km on a single charge (depending on the trail profile). What’s more, you can easily remove the battery and charge it away from the bike (e.g. while watching your favorite TV show).

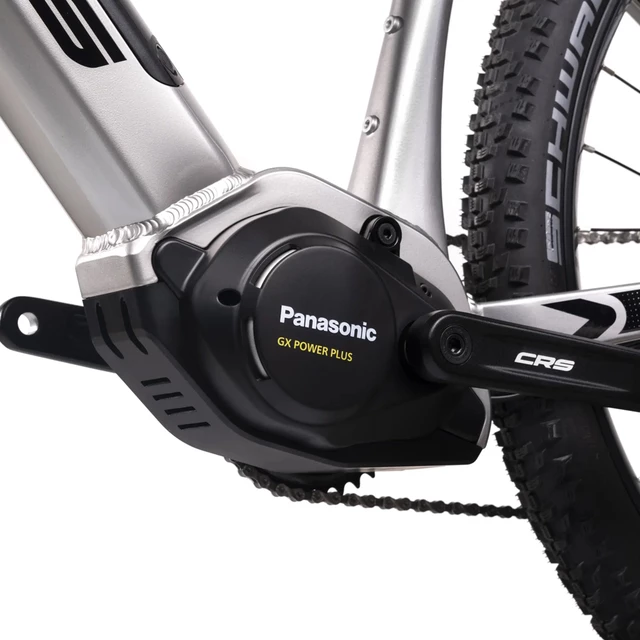

Powerful PANASONIC Drive
The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.

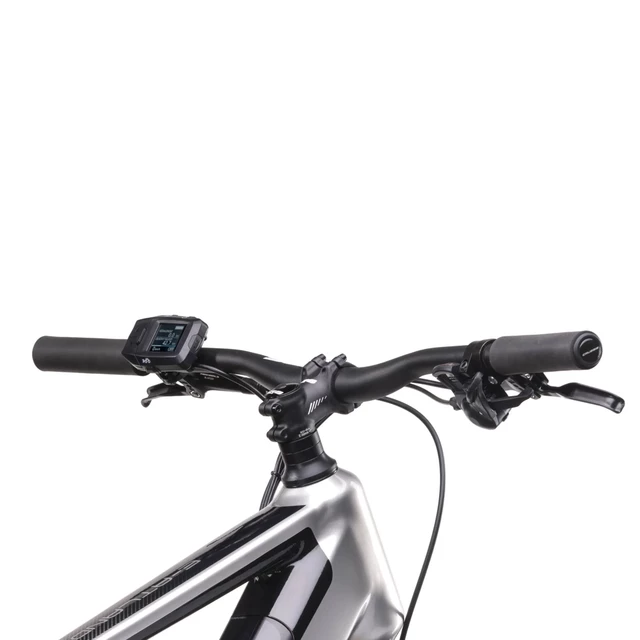

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a micro USB-B port which allows you to charge your mobile device.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 |
|
Engine |
PANASONIC GX Power Plus, 250W (MAX 450W) 75 Nm |
|
Battery |
LG Li-Ion 36V / 900 Wh (25 Ah), removable – can be charged separately |
|
Charger |
4 A (included) |
|
Distance range |
Up to 200 km |
|

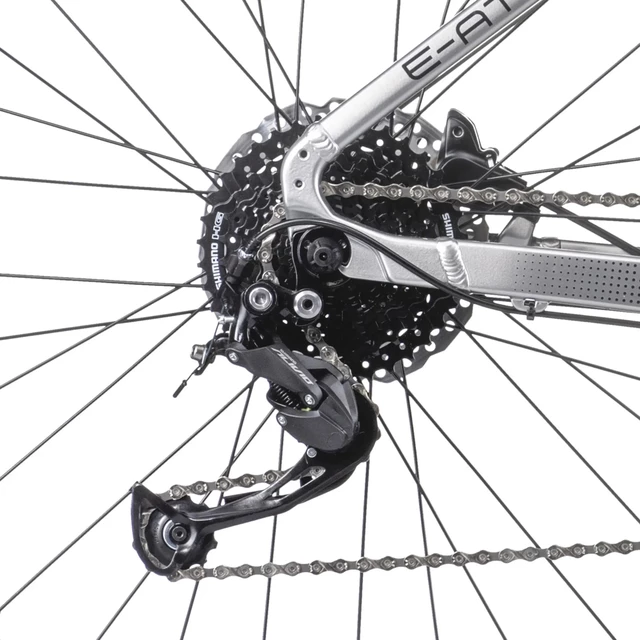

Rear derailleur |
SHIMANO Alivio RD-M3100-SGS, 9 speeds |
|
Gear shifter |
SHIMANO Alivio SL-M3100, 9 speeds |
|
Chain |
KMC X9 |
|
Number of speeds |
1 x 9 |
|
Cassette |
SHIMANO CS-HG200-9, 9 speeds |
|
Fork |
SR-Suntour XCM32 NLO DS 27.5", 100 mm travel, lockout (fork) |
|
Front brake |
SHIMANO BR-MT200, hydraulic, rotor 180 mm |
|
Rear brake |
SHIMANO BR-MT200, hydraulic, rotor 160 mm |
|
Control panel |
PANASONIC LCD panel, color display |
|
Tires |
SCHWALBE Smart Sam Performance 27.5 x 2.35 |
|
Rims |
CRUSSIS 27.5" disc, double-walled, lined, 30 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 1 1/8 |
|
Stem |
CRUSSIS AL 50 mm, 7° angle |
|
Handlebars |
CRUSSIS AL 31.8 mm, 760 mm width |
|
Grips |
CRUSSIS 100% silicon |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.9 Ø, 350 mm |
|
Seat |
Selle ROYAL |
|
Kickstand ready |
Holes with 40mm spacing on the rear frame |
|
Rear rack ready |
Yes |
|
Max load capacity |
120 kg |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
CRUSSIS e-bike size chart
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
