Full-suspension frame geometry, reliable lightweight Bafang drive, high-capacity battery, color display, Shimano components, air-suspension fork. more
Frame size:
Colour: Blue black pearl
Select a variant
2-year warranty

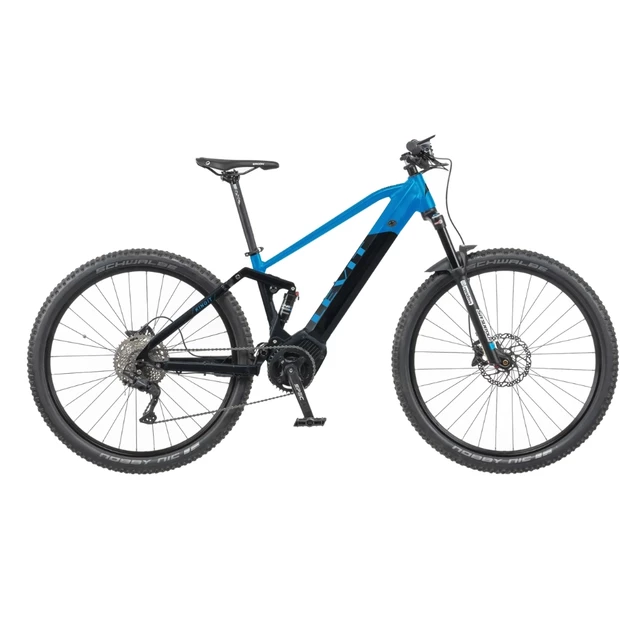

Are you looking to be in control, even if the terrain is really challenging? No problem! The Full-Suspension Mountain E-Bike Levit Kingit BF Overstep 630 can deal with the challenging forest and mountain trails, while its lightweight drive provides support during uphill rides.

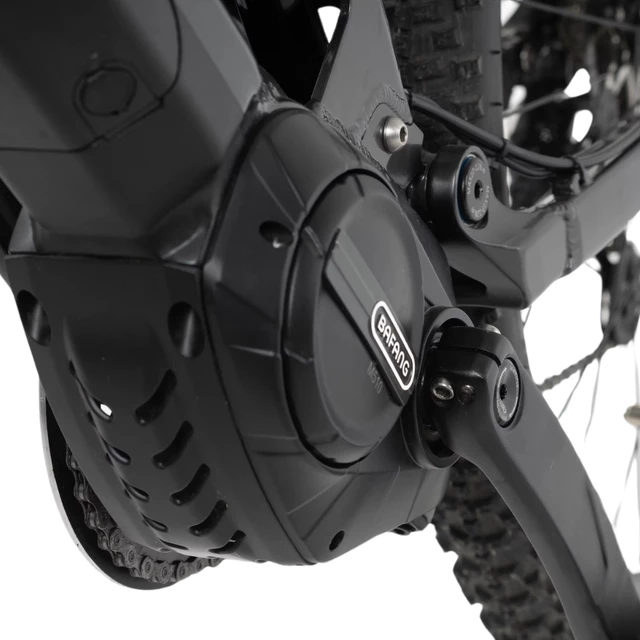

A drive designed specifically for mountain bikes that will not weigh you down? There is one! Weighing in at only 2.9 kg, the Bafang M510 drive with a rated power of 250 watts and a powerful torque of 95 Nm boasts an innovative design which not only offers a distance range of up to 150 km, but also improves the engine’s cadence and effectiveness, thus allowing you to ride on challenging trails with ease.

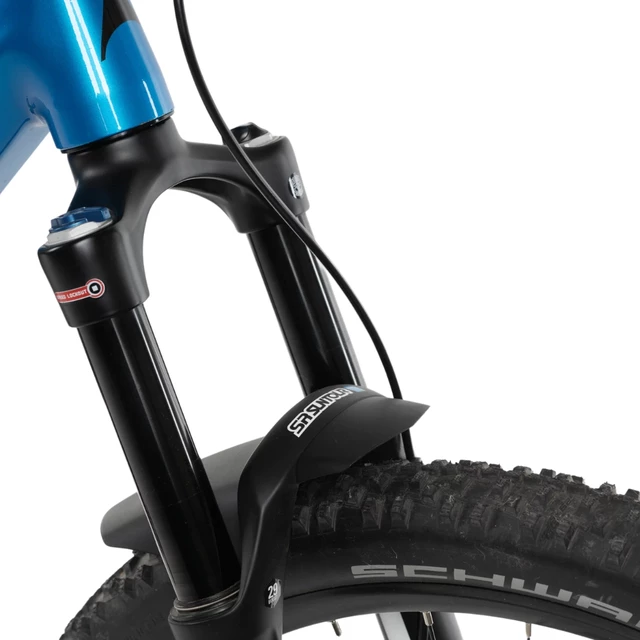

Providing comfort during your enduro and trail adventures will be a SR Suntour Zeron 35 Boost LOR air-suspension fork, which can adapt to challenging terrain. If you want to lock the fork out, you can do so using the control panel on the crown.
Made of a solid and durable material, the Bafang color display also features hardened glass, so you won’t have to worry about damaging it on challenging terrain. The display is extremely easy to use and offers a plethora of useful functions, the most important of which are battery status, speed and performance indicator. However, it also shows the current assistance mode or unit of speed. On the side of the display there’s a USB port, which allows you to recharge your phone during the ride.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
Technical description:
Wheel size |
29" |
Frame |
Alloy 6061 |
Frame size |
17", 18.5" - Overstep |
Number of speeds |
1x10 |
Battery capacity |
630 Wh (17.5 Ah) |
Engine |
Bafang M510 |
Display |
Bafang C190 |
Fork |
SR Suntour Raidon 34 Boost LOR |
Fork travel |
130 mm |
Chainring |
Spec NW (170 mm, 38 threads) |

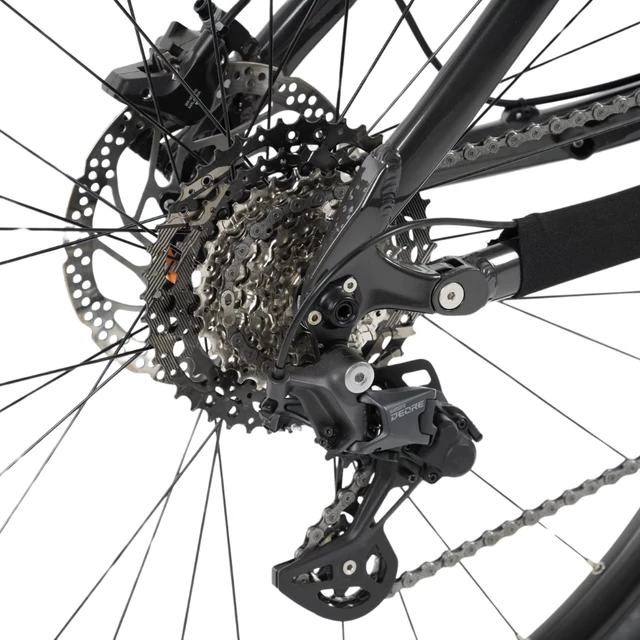

Rear derailleur |
Shimano Deore M5130 |
Gear shifter |
Shimano Deore M5130 |
Cassette |
Shimano LG600 (11 - 43 threads) |
Chain |
Shimano LG500 |
Brakes |
Shimano Deore M4100 (180 mm disc) |
Front hub |
Shimano MT410 Boost |
Rear hub |
Shimano MT400 Boost |
Rims |
Remerx RX2027 |
Tires |
Schwalbe Smart Sam 29 x 2.35“ (60 - 622) |
Pedals |
Alloy |
Handle grips |
Velo Ergo Lock-on |
Handlebars |
Spec Soil |
Stem |
Spec Soil 31.8 x 50 mm |
Headset |
Spec (semi-integrated, industrial bearings) |
Seatpost |
Telescopic Kind shock 900i 1 |
Seat |
Selle Royal Voga |
Kickstand ready |
Yes, 20 mm spacing |
Rear rack ready |
No |
Water bottle cage ready |
Yes |
Lights |
No |
Bell |
No |
Max load capacity |
140 kg (the combined weight of the rider, bike and load) |
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Battery | Levit SP2.1 630 Wh (17.5 Ah) |
---|---|
Range | 150 km |
Motor | Bafang M510 |
Drive | Central |
Program types | 5 programs |
Brakes | Hydraulic |
Motor output | 250 W |
Display | Bafang C190 |
Suspension travel | 130 mm |
Frame | Alloy 6061 |
Gear shifting type | lever |
Number of speeds | 10 |
Suspension | full suspesion |
Frame material | Aluminium |
Wheel size | 29 |
Fork | SR Suntour Raidon 34 Boost LOR |

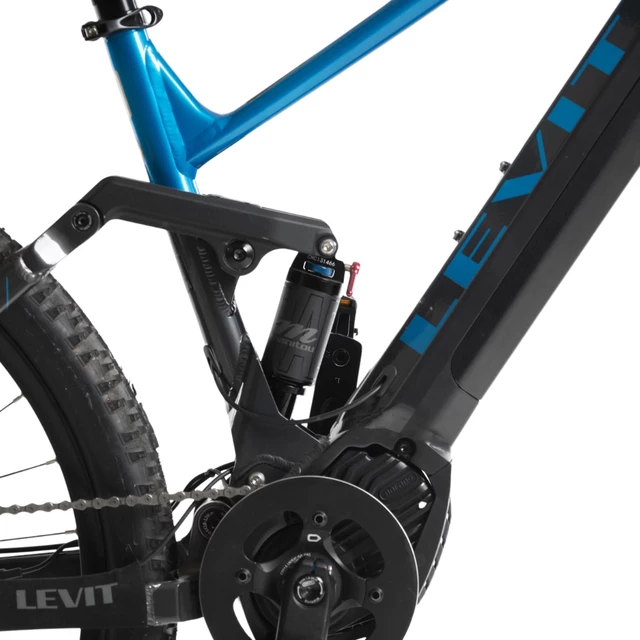

Rear Shock | Manitou Radium expert |
Rear Brake | Shimano Deore M4100 (180 mm kotouč) |
Front Brake | Shimano Deore M4100 (180 mm kotouč) |
Type of e-bike | MTB |
Rear hub | Shimano MT400 Boost |
Front Hub | Shimano MT410 Boost |
Rear tire | SCHWALBE SMART SAM |
Weight limit (kg) | 140 kg |
Front Tire | SCHWALBE SMART SAM |
Gear shifting | Shimano Deore M5130 |
Year | 2024 |
Drive | Bafang |
Rear Derailleur | Shimano Deore M5130 |
Crank Set | Spec NW (170mm, 38 z.) |
Cassette | Shimano LG600 (11 - 43 t.) |
Chain | Shimano CN-LG500 |
Front Rim | Remerx RX2027 |
Rear rim | Remerx RX2027 |
Pedals | Alloy |
Handlebar grip | Spec Soil |
Grips | Velo Ergo Lock-on |
Handlebar stem | Spec Soil 31,8 x 50 mm |
Head Tube | Spec (semi-integrované, prům. ložiska) |
Saddle | Selle Royal |
Seat post | Teleskopická Kind shock 900i |
