Accumulator Pump inSPORTline Plicona w/ LED Light
45 €
In Stock
Enjoy your bike rides as much as possible! The fully-equipped, versatile Trekking E-Bike Levit Atlas Vinka Overstep 630 29” is a safe bet. Whether you’re going on an adventure vacation, looking to explore hilly trails, or a fast ride after work, the universal Atlas Vinka model is what you’re looking for. It’s a practical e-bike, with which you won’t need to hold back when planning your next vacation/trip.
The bike is equipped with a high-quality Vinka E20 drive, which will not let you down. Combined with a 630Wh Levit SP2.1 high-capacity battery, it provides reliable support even on challenging terrain. On the easy-to-read display, you can choose from the bike’s 5 assistance modes (including walking assistance), and follow all the important ride data, such as the current speed, distance covered or range.
The bike also features hydraulic disc brakes, a ZOOM air-suspension lockout fork, and practical accessories that will come in handy on trips, both in town and to the countryside – a kickstand, lights, and a rear rack. But wait, there’s more! The comfortable seat features a handle and an ICS clip, to which you can attach a bag.
The aforementioned features will allow you to ride free on two wheels!

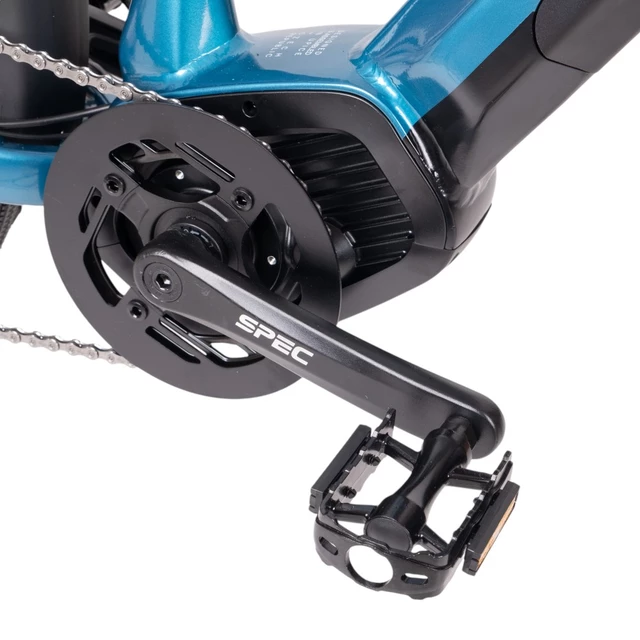

Reliable engine
A quiet and powerful engine is the foundation of a happy e-biker. And this bike has one! With a maximum torque of 80 Nm, the Vinka E20 drive will let you enjoy the ride without any disturbing sounds, and will safely take you to work or on a trip. The continuous power of 250 W ensures a comfortable ride, even on challenging terrain. Combined with a high-capacity battery, it provides a distance range of up to 150 km.
Easy-to-read LCD display
.jpg)
The 3.8-inch Vinka DC40 display is compact, easy to read and easy to use. It offers all the functions you may need during the ride – 5 assistance modes, walking assistance, ride data (speed, distance covered, remaining range), battery status indicator and selected assistance mode.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
Our tips:
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Wheel size |
29" |
|
Frame type |
Overstep |
|
Frame |
Alloy 6061 |
|
Number of speeds |
1x10 |
|
Battery capacity |
630 Wh (17.5 Ah) |
|
Engine |
Vinka E20 |
|
Display |
Vinka DC40 |
|
Battery |
Levit SP2.1 630 Wh (17.5 Ah) |
|
Fork |
ZOOM 868S AIR Boost (120 mm travel, air-suspension, fixed axle) |
|
Fork travel |
120 mm |
|
Chainring |
Spec NW (170 mm, 38 threads) |
|
Rear derailleur |
Shimano Deore M5130 |
|
Gear shifter |
Shimano Deore M5130 |
|
Cassette |
Shimano LG600 (11 - 43 threads) |
|
Chain |
Shimano LG600 |
|
Brakes |
Shimano MT200 (180 mm disc) |
|
Front hub |
Shimano MT410 Boost |
|
Rear hub |
Shimano MT400 Boost |
|
Rims |
Remerx Rocky Disc (584 x 22 mm) |
|
Tires |
Schwalbe Hurricane 29 x 2.4" (62 - 622) |
|
Pedals |
Alloy |
|
Handle grips |
Velo Ergo Lock-on |
|
Handlebars |
Spec Phase 31.8 x 700 mm (16", 17"), 720 mm (18" ,20"), 740 mm (19", 21", 23") |
|
Stem |
Spec Phase, adjustable, 90 mm |
|
Headset |
Spec (semi-integrated, industrial bearings) |
|
Seatpost |
Spec Phase 30.9 x 400 mm |
|
Seat |
Selle Royal 1216 DRN |
|
Rear rack |
Yes (load capacity of 25 kg) |
|
Kickstand |
Yes, hole spacing of 20 mm (rear) |
|
Bell |
Yes |
|
Lights |
Yes (front, rear) |
|
Valve |
AV |
|
Reflectors |
Yes |
|
Chain guard |
Yes (neoprene) |
|
ID QR code |
Yes (care.bike) |
|
Max load capacity |
140 kg (includes the weight of the rider, bike and load) |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
