Schindler Kickstand for E-Bike 40mm 26-29"
18 €
In Stock

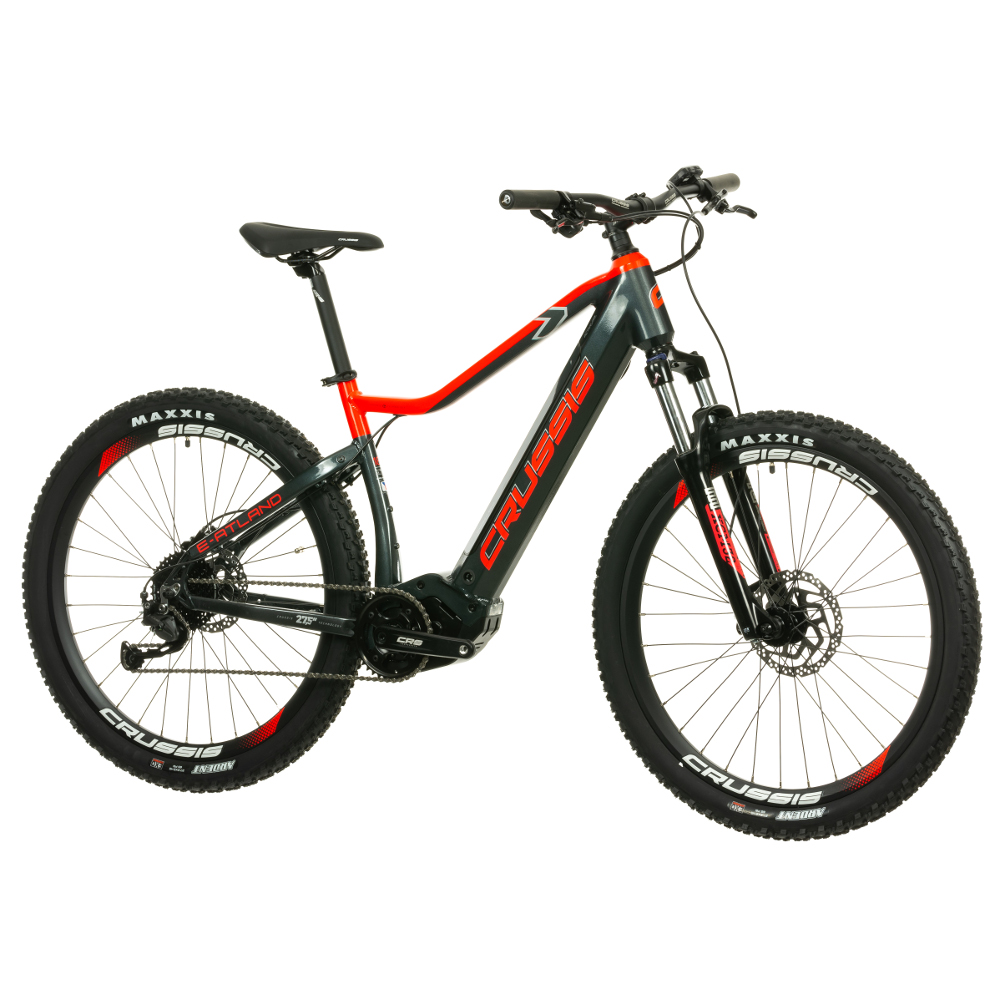

The Mountain E-Bike Crussis e-Atland 7.9-L – 2024 is a well-equipped mountain e-bike. Part of the legendary 7-Series, this model boasts an outstanding frame geometry, which makes it easy to control and suitable for both paved/forest roads and challenging terrain. The Panasonic GX Power Plus drive and fully-integrated, 25Ah LG battery make it perfectly balanced. Furthermore, the high-capacity battery allows for an incredible distance range of 200 km (depending on the terrain). You can choose one of the 5 available assistance modes on the color LCD screen, where there is also a USB port which allows you to charge your mobile device.
The Mountain E-Bike Crussis e-Atland 7.9-L – 2024 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces. The hydraulic disc brakes and Suntour XCM32 NLO DS coil suspension fork with 100mm travel allow for a safe and comfortable ride. A pleasure to ride, the Mountain E-Bike Crussis e-Atland 7.9-L 27.5” – 2024 will take you to places you have never dared to go before.
Adjustable Fork
The Mountain E-Bike Crussis e-Atland 7.9-L – 2024 features a SUNTOUR XCM32 NLO DS 27.5” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.
Most Powerful Battery
The LG 36V/25Ah (900Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 200 km on a single charge (depending on the trail profile).
Powerful PANASONIC Drive
The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.
Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 (18”, 20“) |
|
Motor |
PANASONIC GX Power Plus, 250W (MAX 450W), 75 Nm |
|
Battery |
LG Li-ion 36 V/25 Ah (900 Wh), removable – can be charged separately |
|
Charger |
4 A |
|
Distance range |
Up to 200 km |
|
Rear derailleur |
SHIMANO Alivio RD-M3100-SGS |
|
Gear shifter |
SHIMANO Alivio SL-M3100 |
|
Chain |
KMC X9 |
|
Number of speeds |
1 x 9 |
|
Cassette |
SHIMANO CS-HG200-9 |
|
Fork |
SUNTOUR XCM32 NLO DS 27.5", 100 mm travel, lockout (fork) |
|
Brakes |
Hydraulic SHIMANO BR-MT200, rotor 180/160 mm (front/rear) |
|
Control panel |
LCD panel w/ USB port, 5 assistance modes (color display) |
|
Tires |
MAXXIS Ardent 27.5*2.40 |
|
Valve |
AV |
|
Rims |
CRUSSIS 27.5", double-walled, lined, 25 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 11/8 |
|
Stem |
CRUSSIS Al, 60 mm, 7° angle |
|
Handlebars |
CRUSSIS Al, 760 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm or 400 mm |
|
Seat |
Selle ROYAL |
|
Kickstand ready |
Holes with 40-mm spacing on the rear frame |
|
Rear rack ready |
Yes |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.
CRUSSIS e-bike size chart
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
