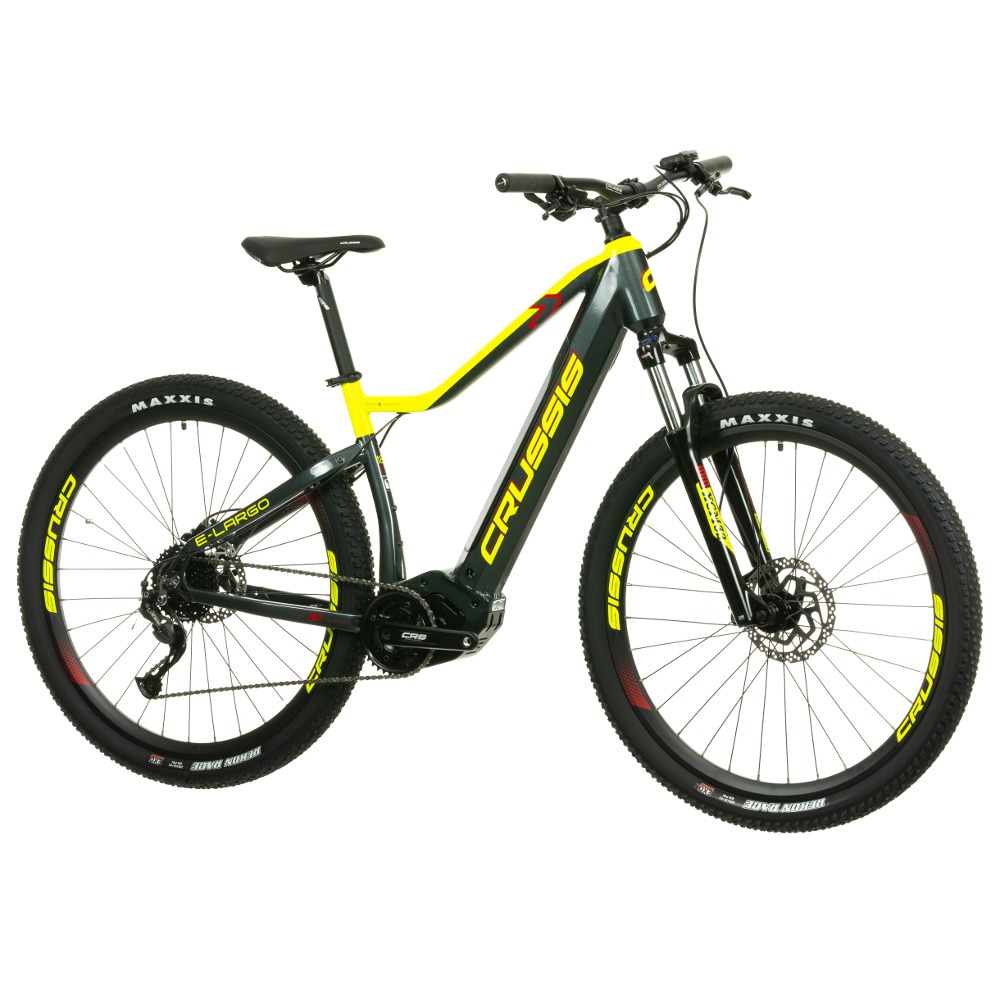

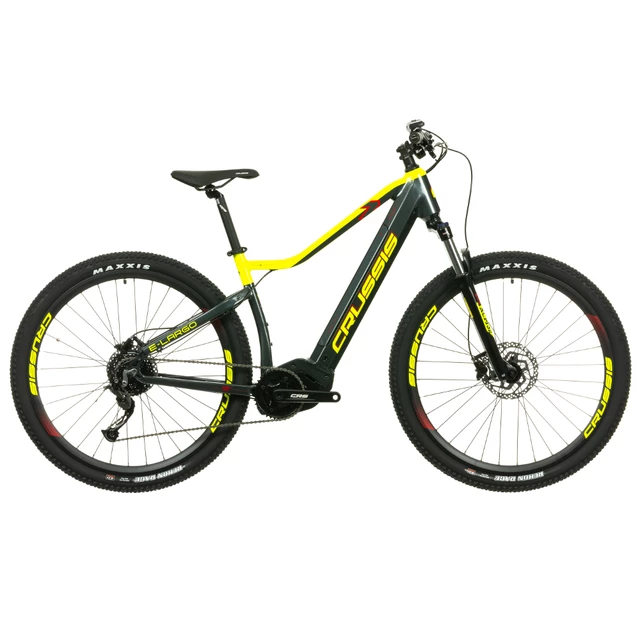

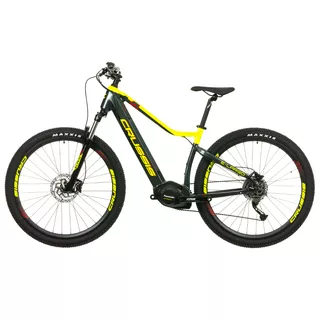

The Mountain E-Bike Crussis e-Largo 7.9-M – 2024 is a beautiful and powerful e-bike with an extremely powerful battery ideal for those who prefer bikes with larger wheels. Part of the legendary 7-Series, this model boasts an outstanding geometry. The Panasonic GX Power Plus drive and fully-integrated, 20Ah LG battery make it perfectly balanced. Furthermore, the high-capacity battery allows for a distance range of up to 170 km depending on the terrain). You can choose one of the 5 available assistance modes on the color LCD screen, where there is also a USB port which allows you to charge your mobile device.
Most mountain bikes come with the large, 29” wheels. And the Mountain E-Bike Crussis e-Largo 7.9-M – 2024 is no exception! Moreover, the high-quality Maxxis Rekon Race tires provide excellent adhesion on all surfaces. The hydraulic disc brakes and Suntour XCM32 NLO DS coil suspension fork with 100mm travel allow for a safe and comfortable ride. A pleasure to ride, the Mountain E-Bike Crussis e-Largo 7.8-M – 2023 is so good that nothing’s going to stop you.
Adjustable Fork

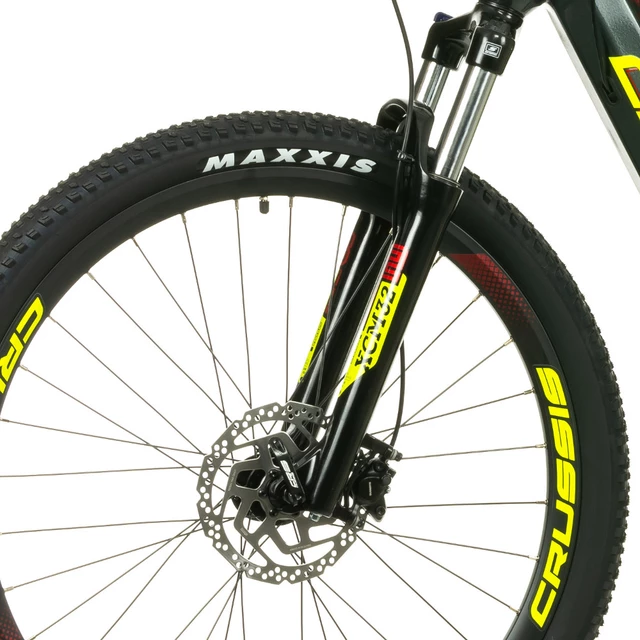

The Mountain E-Bike Crussis e-Largo 7.9-M – 2024 features a SUNTOUR XCM32 NLO DS 29” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.

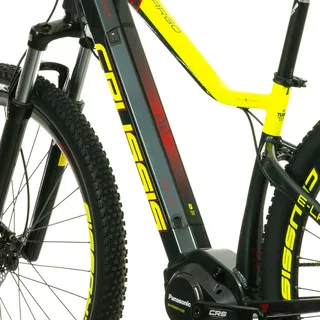

Powerful and Reliable Battery
The LG 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile).

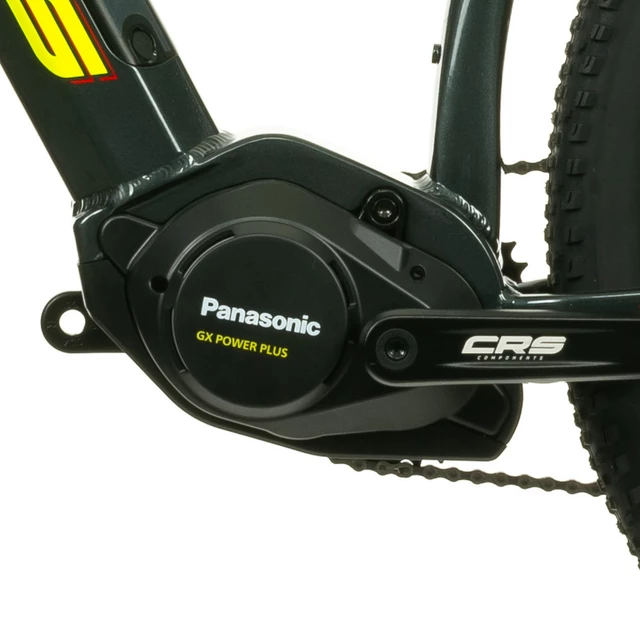

Powerful PANASONIC Drive
The PANASONIC GX Power Plus is a reliable drive for riders who need more assistance, especially while riding on a challenging terrain. It’s ideal for sports and trekking bikes as it offers outstanding performance even on forest or gravel roads. The drive offers a torque of 75 Nm, features a torsional pedaling force sensor, and weighs only 3.2 kg.
Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 (18“, 20“, 22”) |
|
Motor |
PANASONIC GX Power Plus, 250W (MAX 500W), 75 Nm |
|
Battery |
LG Li-ion 36 V/20 Ah (720 Wh), removable – can be charged separately |
|
Charger |
4 A |
|
Distance range |
Up to 170 km |
|

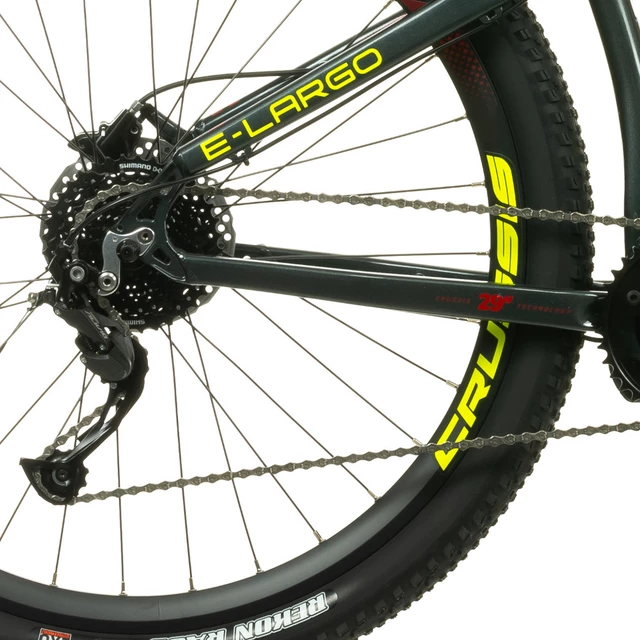

Rear derailleur |
SHIMANO Alivio RD-M3100-SGS |
|
Gear shifter |
SHIMANO Alivio SL-M3100 |
|
Chain |
KMC X9 |
|
Number of speeds |
1 x 9 |
|
Cassette |
SHIMANO CS-HG200-9 |
|
Fork |
SUNTOUR XCM32 NLO DS 29", 100 mm travel, lockout (fork) |
|
Brakes |

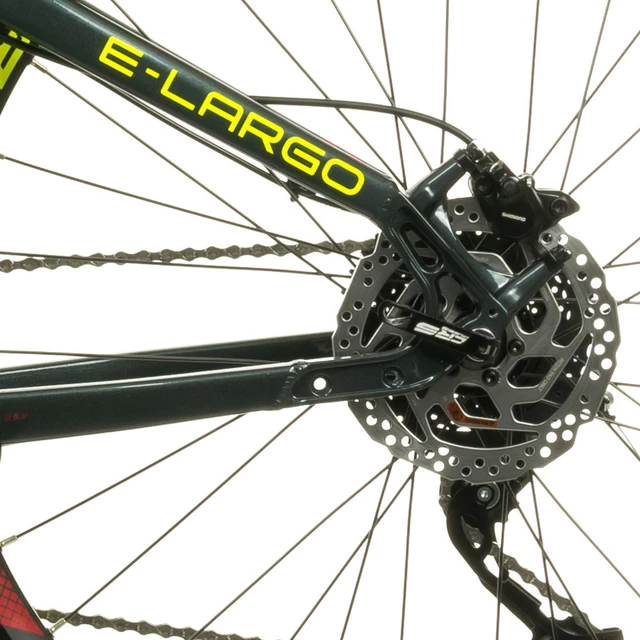

Hydraulic SHIMANO BR-MT200, rotor 180/160 mm (front/rear) |
|
Control panel |
PANASONIC LCD panel w/ USB port (color display) |
|
Tires |
MAXXIS Rekon Race 29*2.40 |
|
Valve |
AV |
|
Rims |
CRUSSIS 29", double-walled, lined, 25 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 11/8 |
|
Stem |
CRUSSIS Al, 60 mm, 7° angle |
|

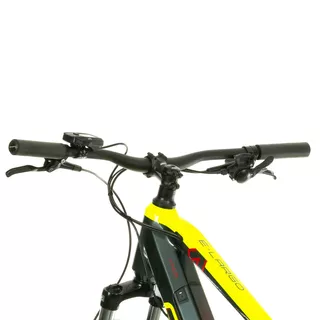

Handlebars |
CRUSSIS Al, 760 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|

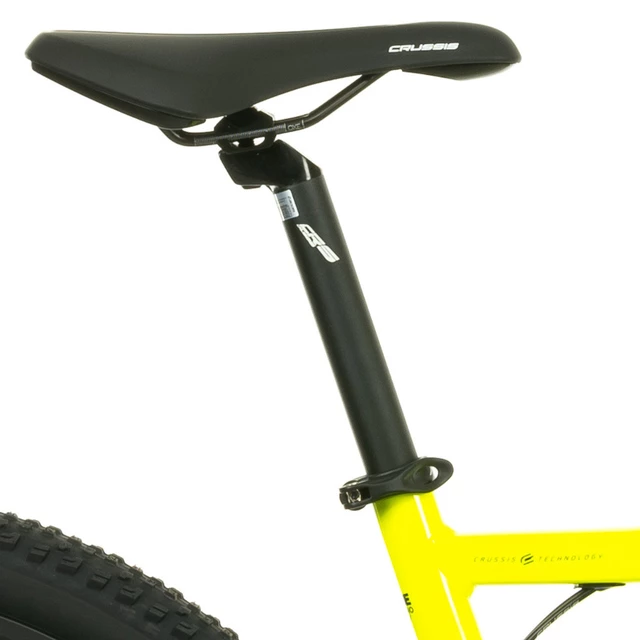

Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm or 400 mm |
|
Seat |
Selle ROYAL |
|
Kickstand ready |
Holes with 40-mm spacing on the rear frame |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
