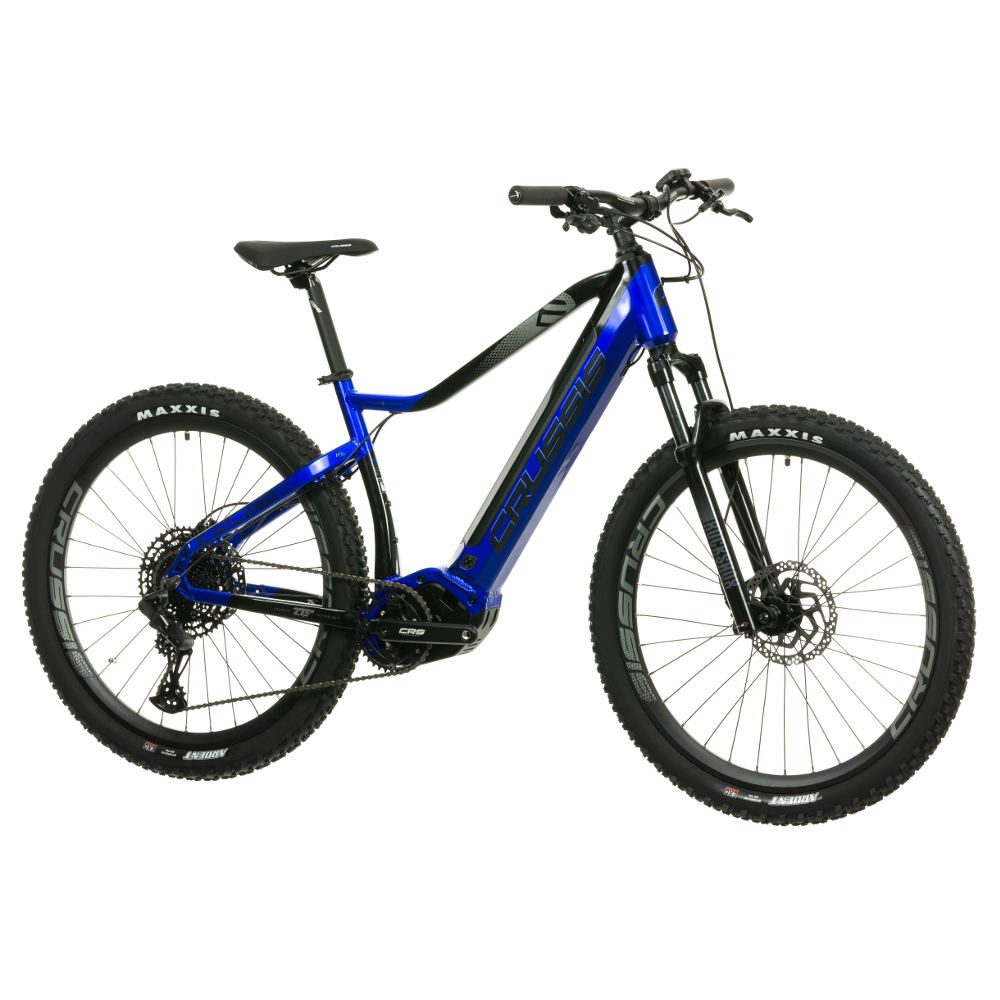

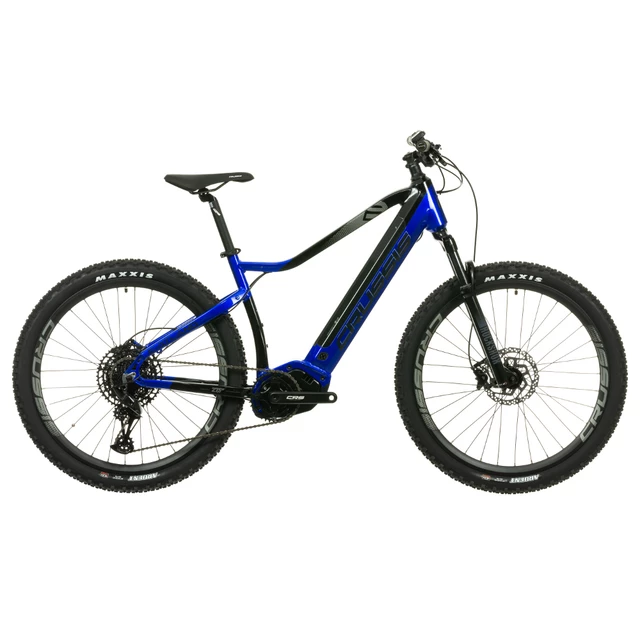

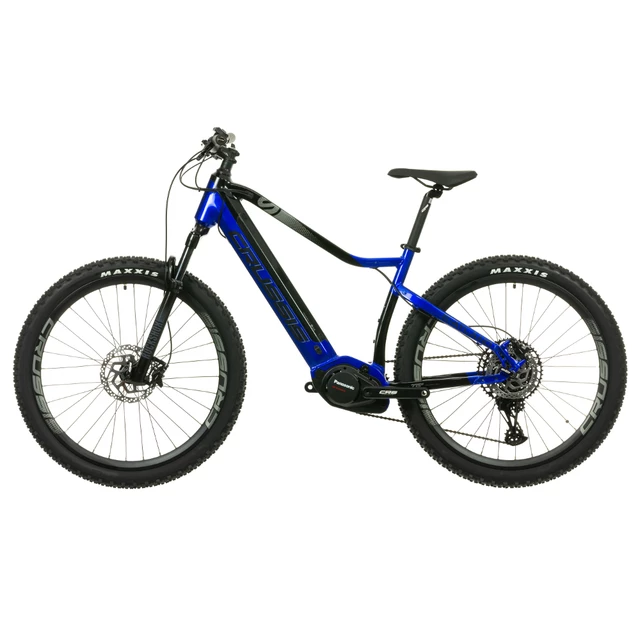

Providing an uncompromising ride on every surface, the Mountain E-Bike Crussis e-Atland 9.9-M – 2024 is an ultra-powerful e-bike with an extremely powerful battery. Part of the luxurious 9-Series, this model features an outstanding PANASONIC GX Ultimate drive, which is almost unnoticeable, and fully-integrated, 20Ah LG Li-ion battery make it perfectly balanced. Furthermore, depending on the terrain, the high-capacity battery allows for a distance range of up to 170 km. This bike also boasts a 12-speed SRAM SX Eagle gear shifter.
The Mountain E-Bike Crussis e-Atland 9.9-M – 2024 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces. The hydraulic disc brakes and ROCKSHOX Judy Silver TK Solo Air suspension fork with 100mm travel allow for a safe and comfortable ride. You can choose from the available assistance modes on the color LCD screen, where there is also a USB port which allows you to charge your mobile device. The Mountain E-Bike Crussis e-Atland 9.9-M – 2024 is a great bike for an unbridled terrain ride.

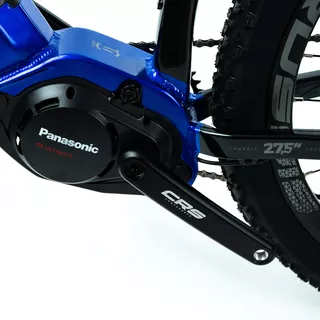

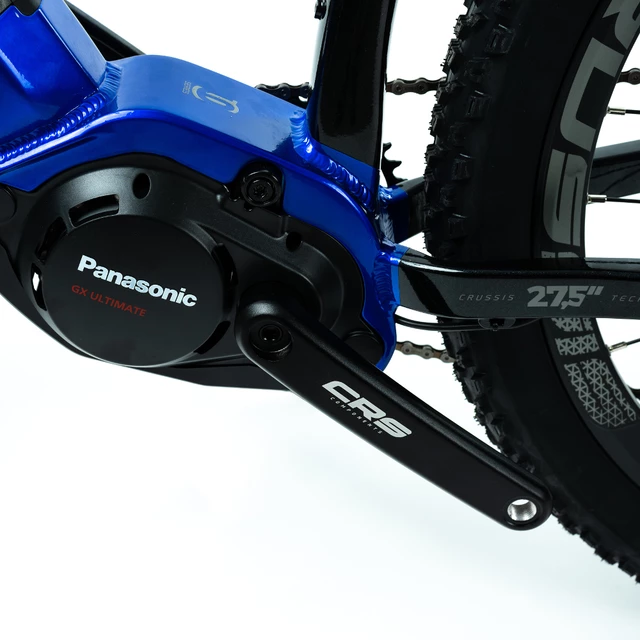

Ultra-Powerful PANASONIC Drive
The PANASONIC GX Ultimate is a sturdy, extremely powerful drive that can deal even with the most challenging uphill rides. Ideal for mountain bikes, the drive offers a torque of 95 Nm, features a torsional pedaling force sensor, and weighs only 2.95 kg.

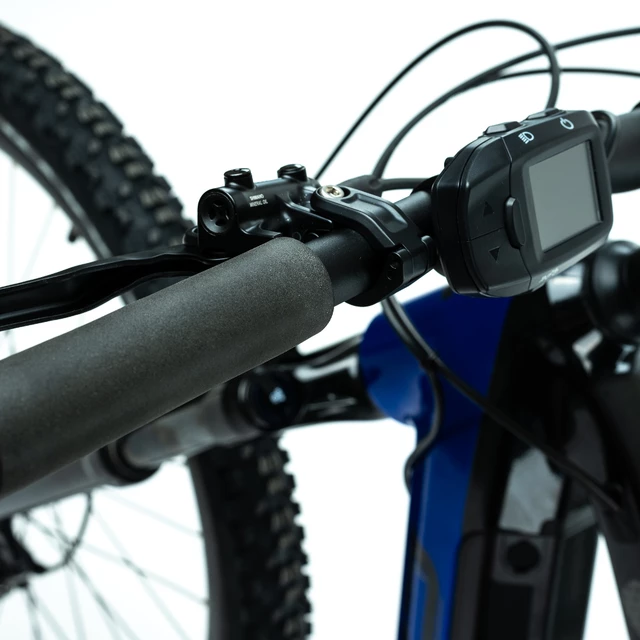

Apart from battery status and current assistance mode, the easy-to-read LCD color screen also shows speed and distance covered. Apart from the three main assistance modes (HIGH, STANDARD and ECO), the bike also offers a dynamic AUTO mode, which adjusts the level of assistance to the initial torque of the rider. On the LCD screen, there’s also a USB port which allows you to charge your mobile device.

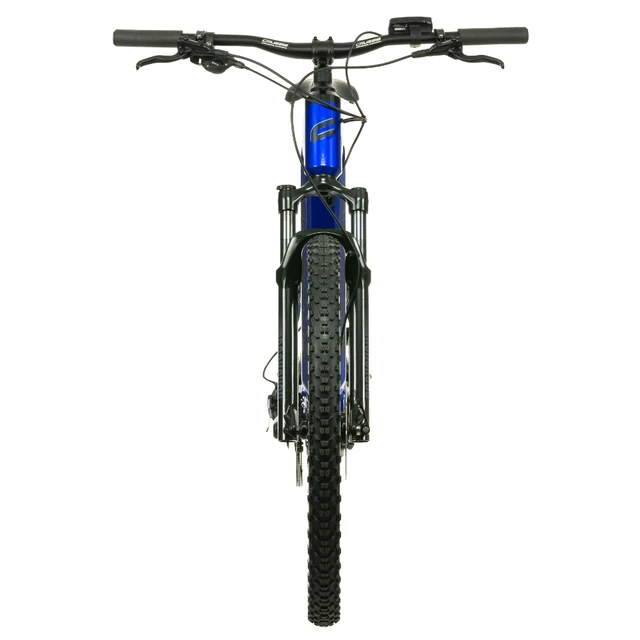

Air-Suspension Fork

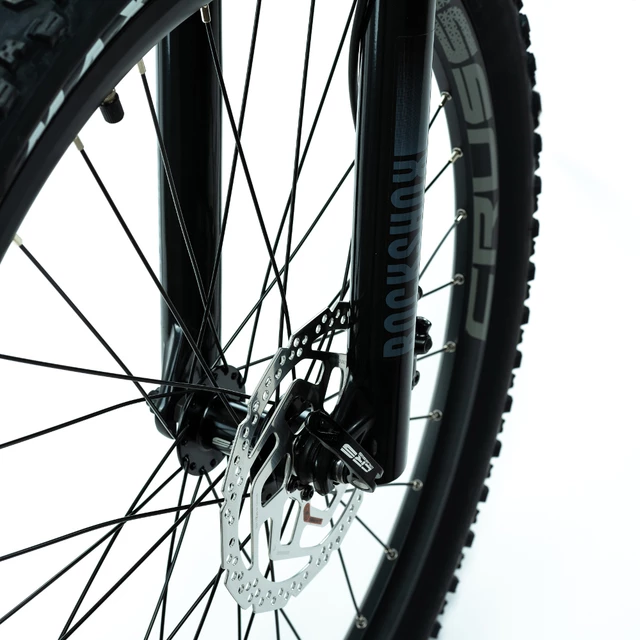

The Mountain E-Bike Crussis e-Atland 9.9-M – 2024 features a ROCKSHOX FS Judy Silver TK R Solo Air 27.5” air suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the handlebars.
Powerful and Reliable Battery

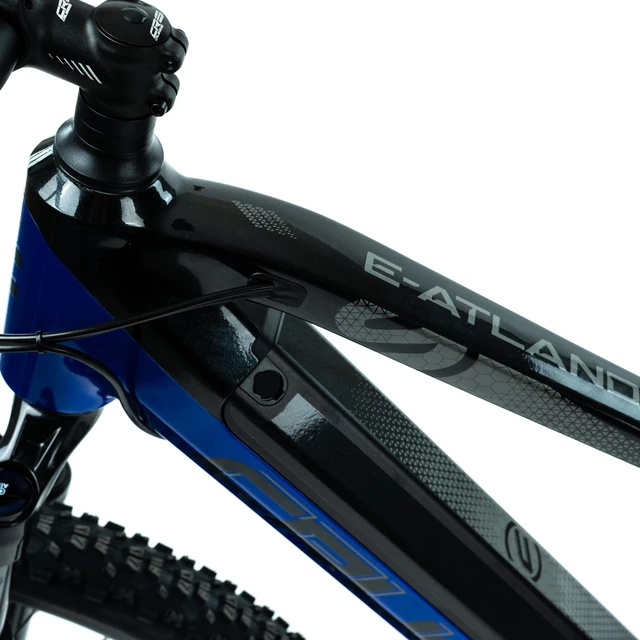

The LG Li-ion 36V/20Ah (720Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 170 km on a single charge (depending on the trail profile).
Top-Class Gear Shifter
SRAM Eagle technology allows for smooth and accurate shifting of gears, which you can rely on in every situation. Eagle is a revolutionary MTB technology as it features an ideal, single-chainring drive, which is lightweight, durable, easy to use (intuitive operation) and offers a variety of programs for all kinds of terrain.
The PG-1210 SX cassette is the only Eagle cassette designed to meet the ever-increasing demands on mountain bikes, making it perfect for challenging terrain riding.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 (18“, 20“) |
|
Motor |
PANASONIC GX Ultimate, 250W (MAX 600W) 95 Nm |
|
Battery |
LG Li-ion 36 V/720 Wh (20 Ah), removable – can be charged separately |
|
Charger |
4 Ah |
|
Distance range |
Up to 170 km |
|
Rear derailleur |
SRAM SX Eagle |
|
Gear shifter |
SRAM SX Eagle |
|
Number of speeds |
1 x 12 |
|
Cassette |
SRAM CS-PG1210 Eagle, 11-50z |
|
Chain |
SRAM Eagle SX 12s |
|
Fork |
ROCKSHOX FS Judy Silver TK R Solo Air 27.5", 100 mm travel |
|

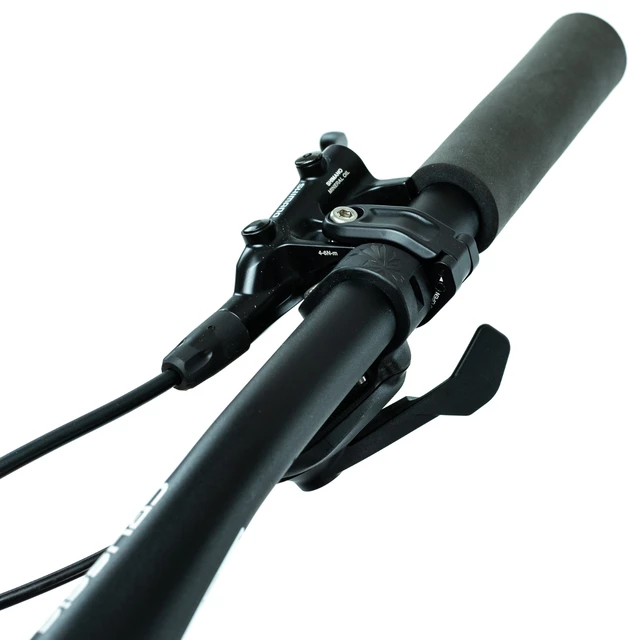

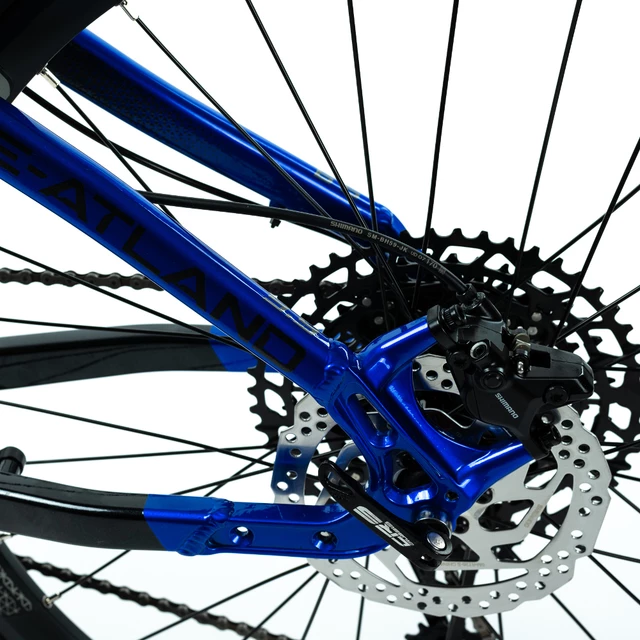

Brakes |
Hydraulic SHIMANO Deore BR-M410, rotor 180 mm (front), 160 mm (rear) |
|
Control panel |
PANASONIC LCD panel w/ USB port (color display) |
|
Tires |
MAXXIS Ardent 27.5*2.40 |
|
Valve |
AV |
|
Rims |
CRUSSIS 27.5", double-walled, lined, 25 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 11/8 |
|

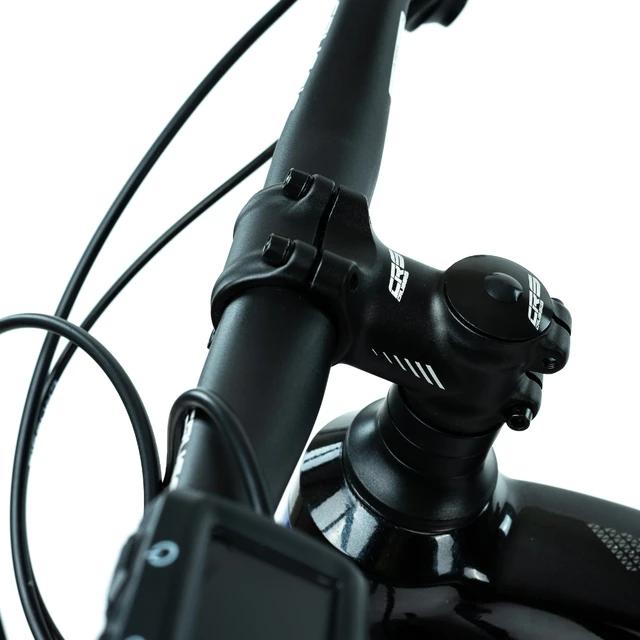

Stem |
CRUSSIS Al, 60 mm, 7° |
|
Handlebars |
CRUSSIS Al, 760 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm or 400 mm |
|

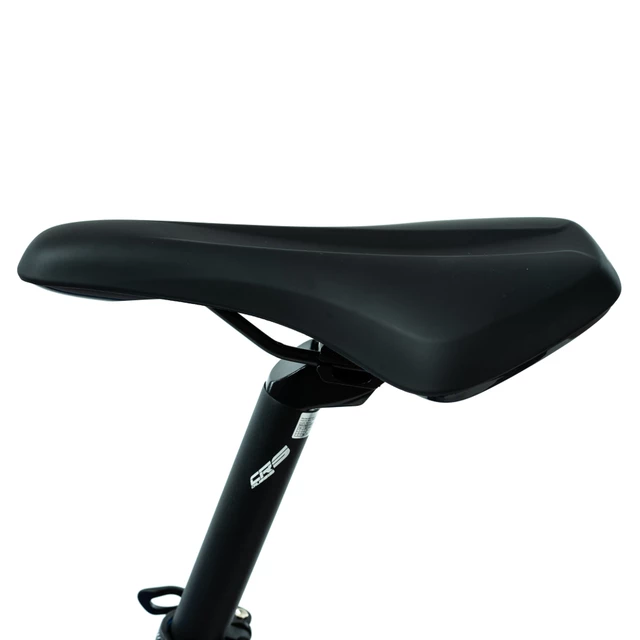

Seat |
Selle ROYAL |
|
Kickstand ready |
Holes with 40-mm spacing on the rear frame |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
