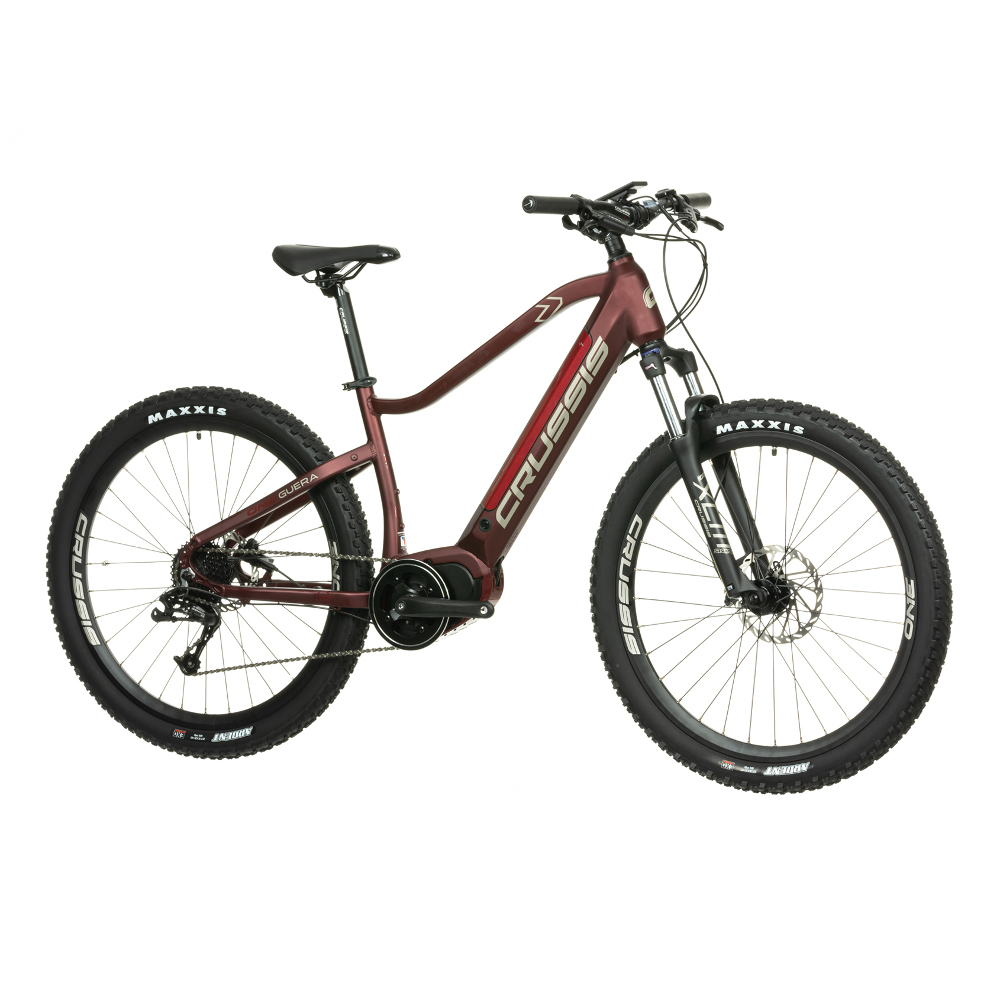

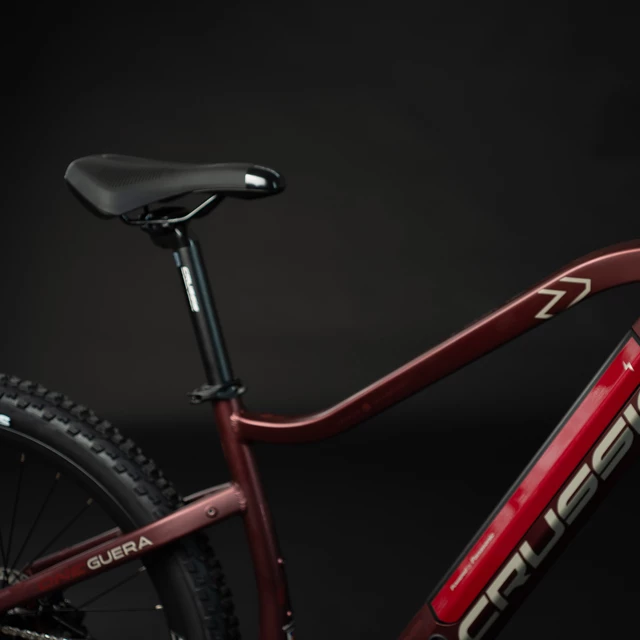

The Mountain E-Bike Crussis ONE-Guera 7.8-S – 2023 is a well-equipped monochromatic e-bike with an extremely powerful battery. Part of the legendary 7-Series, this model boasts an outstanding geometry with a lowered frame tube, which makes it easy to control and suitable for both paved/forest roads and challenging terrain. The BAFANG MAX center drive and fully-integrated, 17.5Ah Panasonic battery make it perfectly balanced. Furthermore, the high-capacity battery allows for a distance range of up to 150 km. You can choose from 5 assistance modes on the color LCD display, where there is also a USB port which allows you to charge your mobile device.
The Mountain E-Bike Crussis ONE-Guera 7.8-S – 2023 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces. The hydraulic disc brakes and Suntour XCM HLO DS coil suspension fork with 100mm travel allow for a safe and comfortable ride. A pleasure to ride, the Mountain E-Bike Crussis ONE-Guera 7.8-S – 2023 is so good that nothing’s going to stop you.
Adjustable Fork

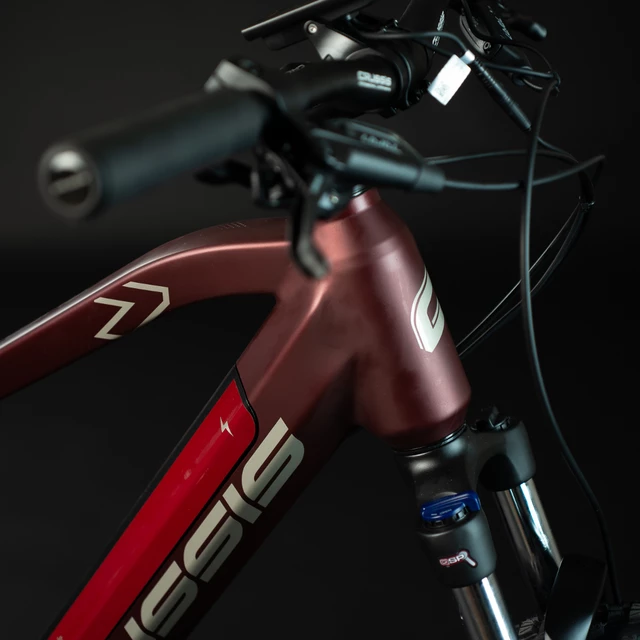

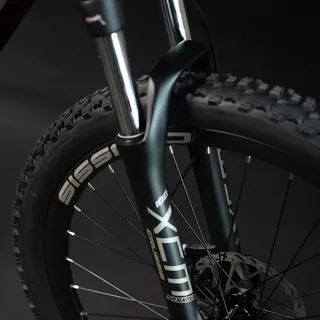

The Mountain E-Bike Crussis ONE-Guera 7.8-S – 2023 features a SUNTOUR XCM HLO DS 27.5” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.
Reliable Battery

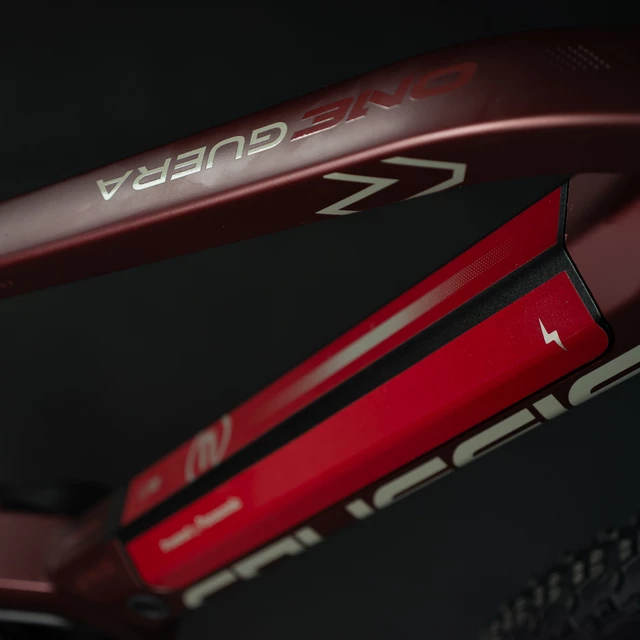

The Panasonic 36V/17.5Ah (630Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 150 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.
Powerful Drive

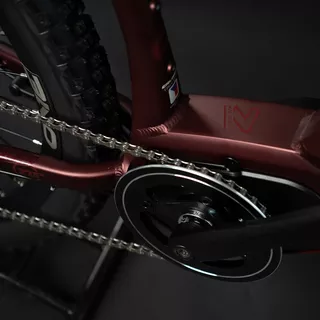

The BAFANG MAX Drive (M400) with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you. The motor is placed in the center of the bike, providing an optimal center of gravity and making sure the tire maintains direction.

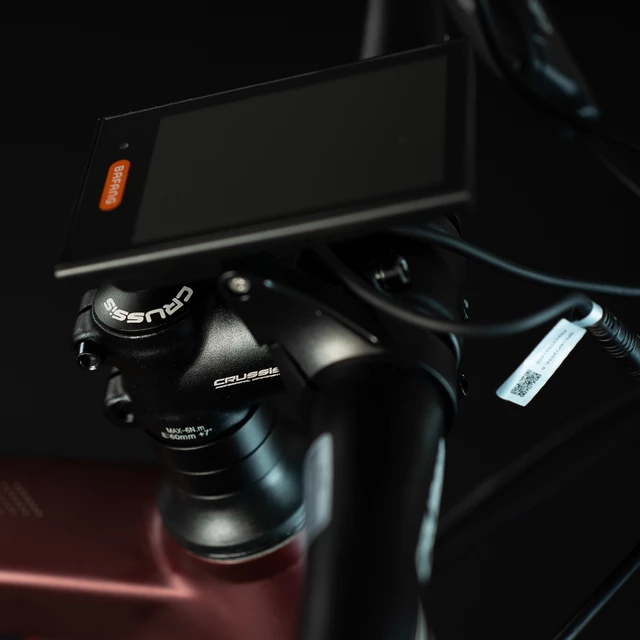

Apart from battery status and current assistance mode, the easy-to-read LCD color display also shows speed and distance covered. Moreover, the display also features a USB port, which allows you to charge your mobile devices (e.g. phone, navigation, lights).
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|
Frame |
Alu 6061 (17“, 19“) |
|
Motor |
BAFANG MAX drive, center, 250W (max 500W), 80 Nm |
|
Battery |
Panasonic Li-ion 36 V/17.5 Ah (630 Wh), removable – can be charged separately |
|
Charger |
4 A |
|
Distance range |
Up to 150 km |
|
Rear derailleur |
SRAM X5 / SHIMANO Alivio RD-M3100-SGS** |
|
Gear shifter |
SRAM X5 / SHIMANO Alivio SL-M3100** |
|
Chain |
KMC X9 |
|
Number of speeds |
1 x 9 |
|
Cassette |
SRAM PG-920, 9 speeds / SHIMANO CS-HG200-9** |
|
Fork |
SUNTOUR XCM HLO DS 27.5", 100 mm travel, lockout (fork) |
|
Brakes |

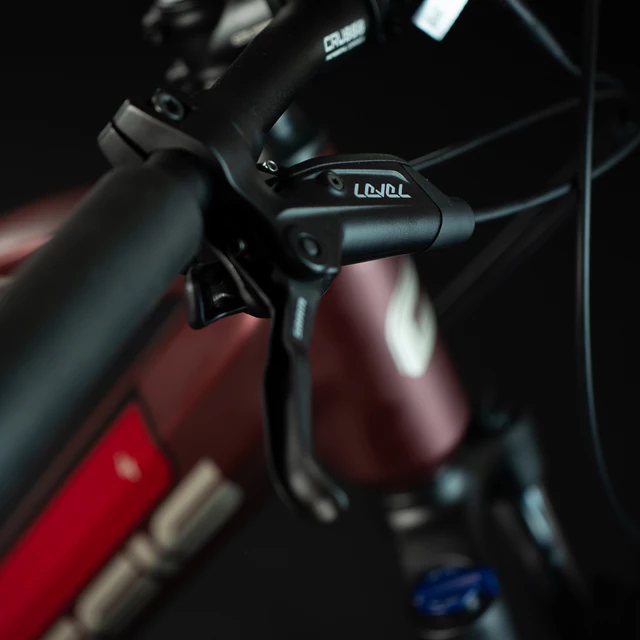

Hydraulic SRAM Level / SHIMANO BR-MT200, rotor 180/160 mm (front/rear)** |
|
Control panel |
LCD panel w/ USB port, 5 assistance modes (color display) |
|
Tires |

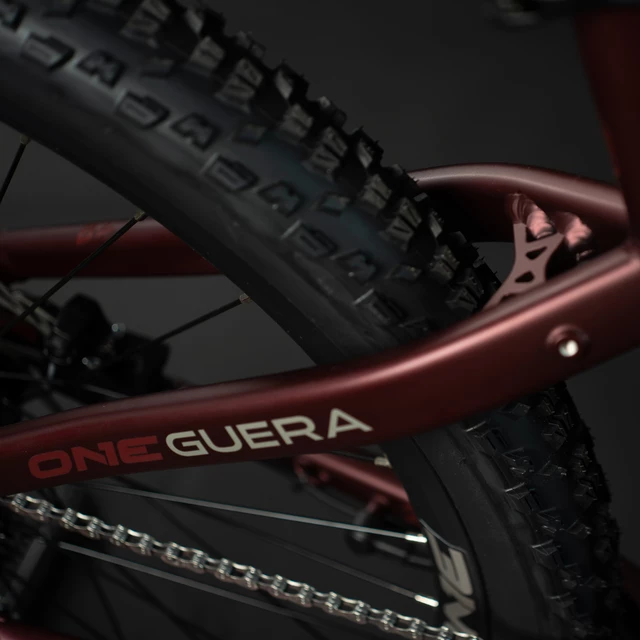

MAXXIS Ardent 27.5*2.40 |
|
Valve |
AV |
|
Rims |
CRUSSIS 27.5", double-walled, lined, 25 mm |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 11/8 |
|
Stem |
CRUSSIS Al, 60 mm, fixed |
|
Handlebars |
CRUSSIS Al, 700 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, alu w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm |
|
Seat |

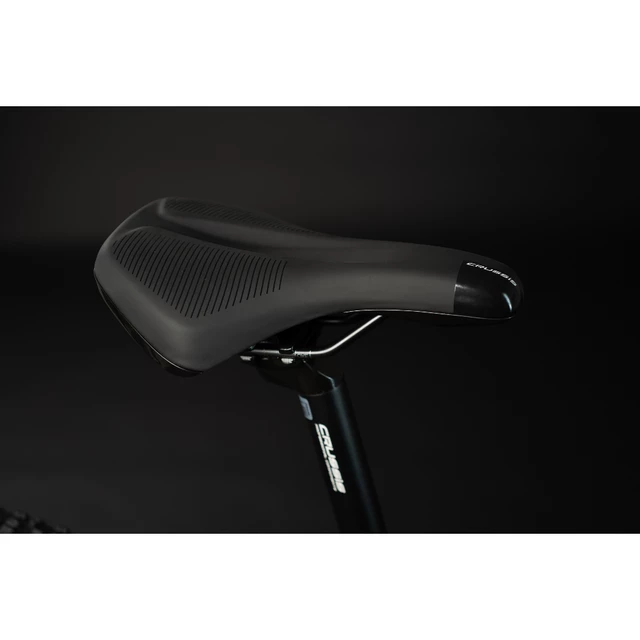

Selle ROYAL |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.
CRUSSIS e-bike size chart
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
