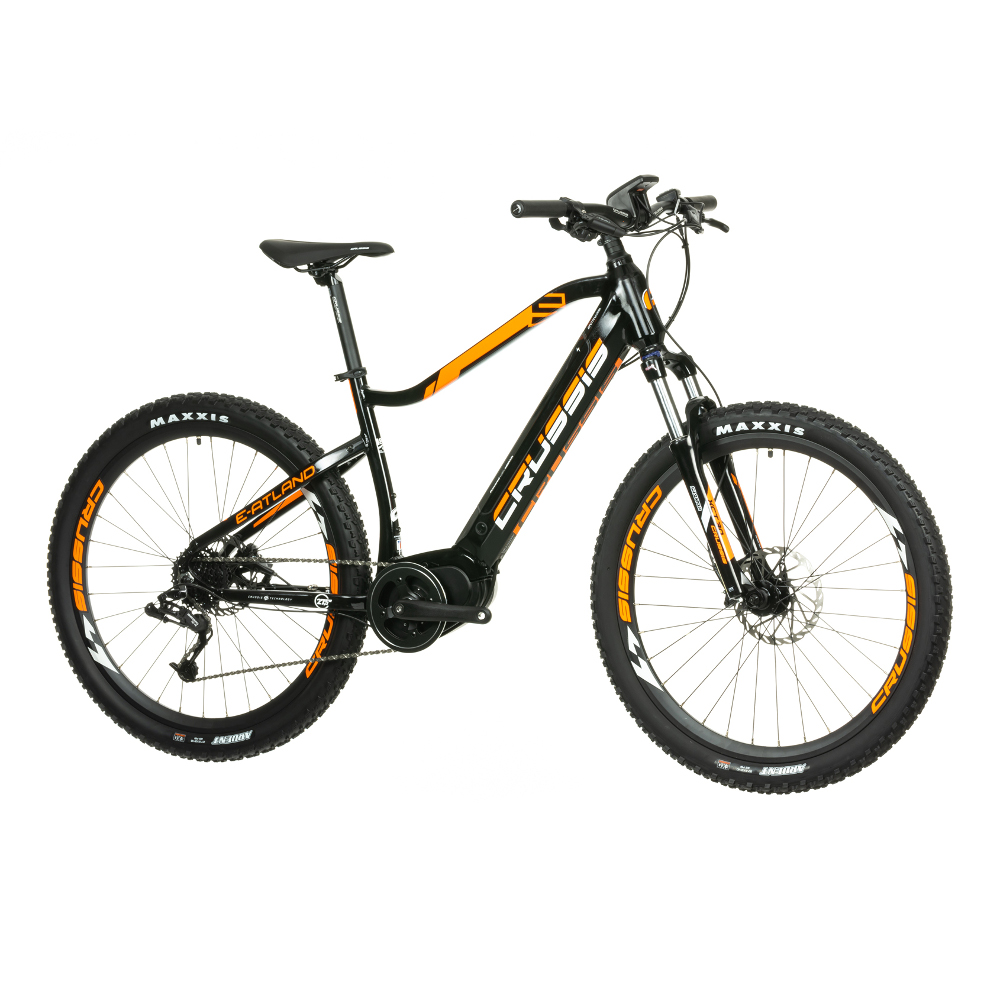

The Mountain E-Bike Crussis e-Atland 5.8 – 2023 is a reliable e-bike ideal for terrain as well as paved-road riding. The BAFANG MAX center drive and fully-integrated, 13Ah battery make the bike perfectly balanced, ensuring a comfortable ride on any surface. Depending on the trail profile, the high-capacity battery allows for a distance range of up to 115 km, allowing you to enjoy the ride.

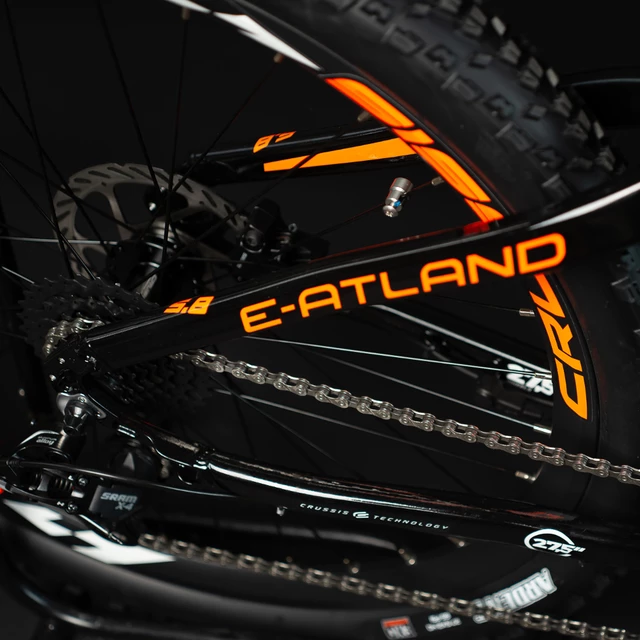

The Mountain E-Bike Crussis e-Atland 5.8 – 2023 features 27.5” wheels and high-quality Maxxis Ardent tires that provide excellent adhesion on all surfaces! The hydraulic disc brakes and Suntour XCT30 HLO DS 27.5” suspension fork with 100mm travel provide safety. You can choose from 5 assistance modes (including walking assistance) on the black-and-white LCD display. The Mountain E-Bike Crussis e-Atland 5.8 – 2023 will make each ride an unforgettable event.
Powerful Drive

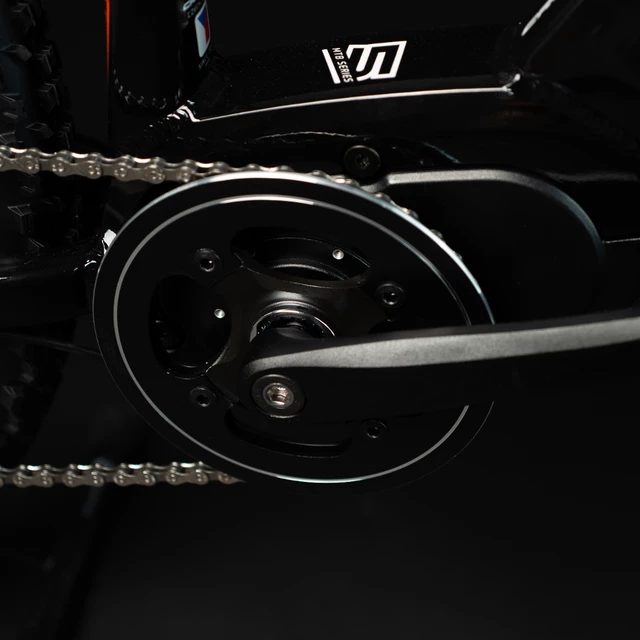

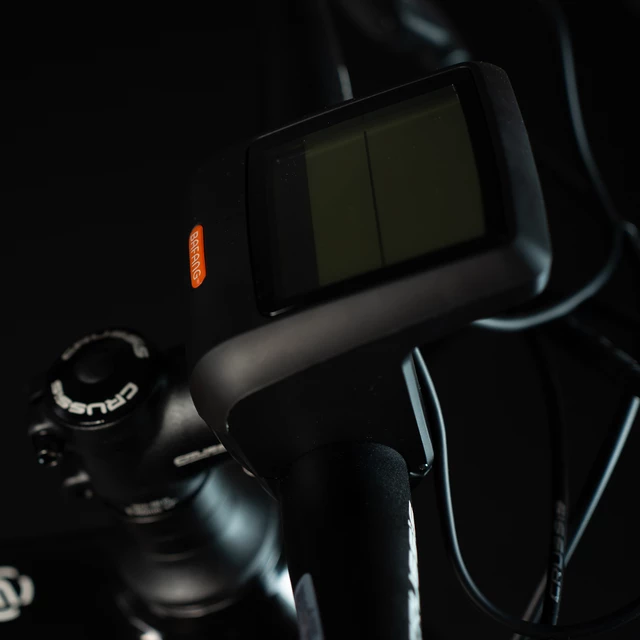

The BAFANG MAX Drive (M400) with an 80Nm torque features a torsional pedaling force sensor which makes sure that the more you pedal, the more the engine will assist you. The motor is placed in the center of the bike, providing an optimal center of gravity and making sure the tire maintains direction. Apart from battery status and current assistance mode, the black-and-white LCD display also shows speed and distance covered.
Adjustable Fork

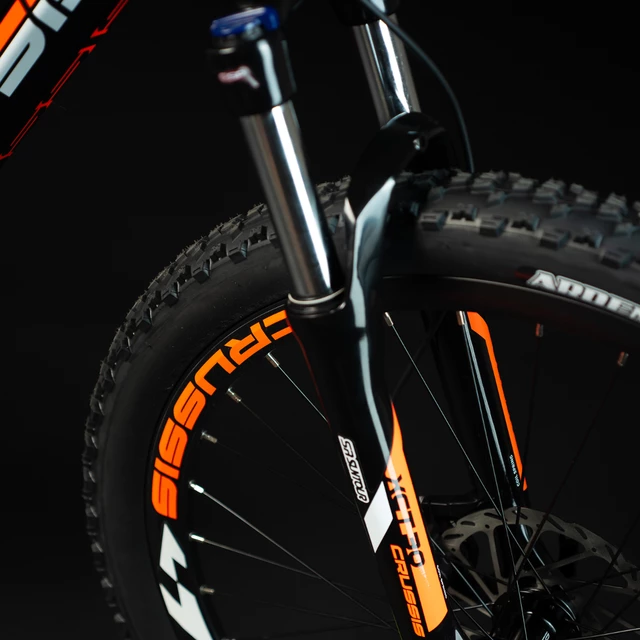

The Mountain E-Bike Crussis e-Atland 5.8 – 2023 features a SUNTOUR XCT30 HLO DS 27.5” spring suspension fork with 100mm travel, which adjusts to the user’s weight. All you have to do is adjust the spring tension and the e-bike will adapt to your weight and riding style. A well-adjusted fork absorbs shocks during terrain rides and does not provide too much suspension on a flat surface. Moreover, the fork can be locked out from the crown.
High-Quality Battery
The Li-Ion 36V/13Ah (468Wh) high-capacity battery is the heart of the bike. The battery is fully integrated into the frame, making the bike (along with the center drive) well-balanced. The battery allows for a distance range of up to 115 km on a single charge (depending on the trail profile). Moreover, the battery features a BMS (Battery Management System) board, which prevents it from overheating, short-circuit and overcharging.
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
E-bikes CRUSSIS are assembled directly in the Czech Republic, under professional supervision and in cooperation with cycling experts. This progressive Czech brand guarantees quality, modern design and maximum enjoyment from the ride.
- Don't know what bike type and size to choose? Find out more in our guide.
- Don't know how to choose an e-bike? Find out more in another of our guides.
- Want to test out your e-bike before buying it? If you live in the Czech Republic or Slovakia, it's not a problem. Just visit one of our stores.
Technical description:
|

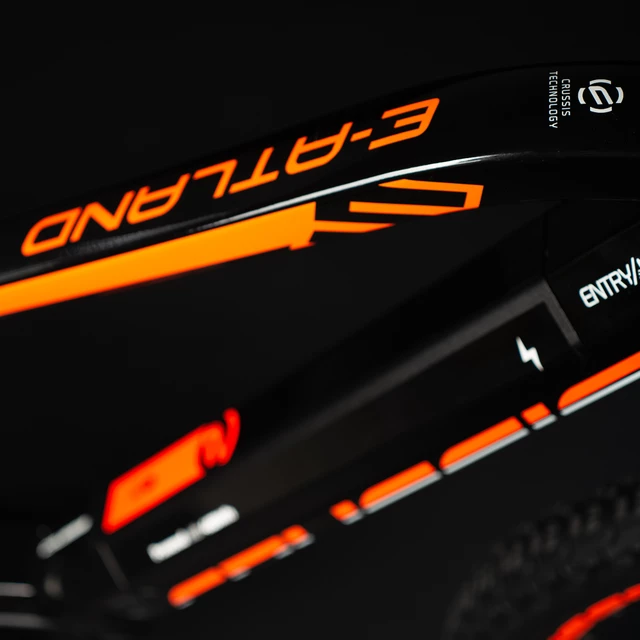

Frame |

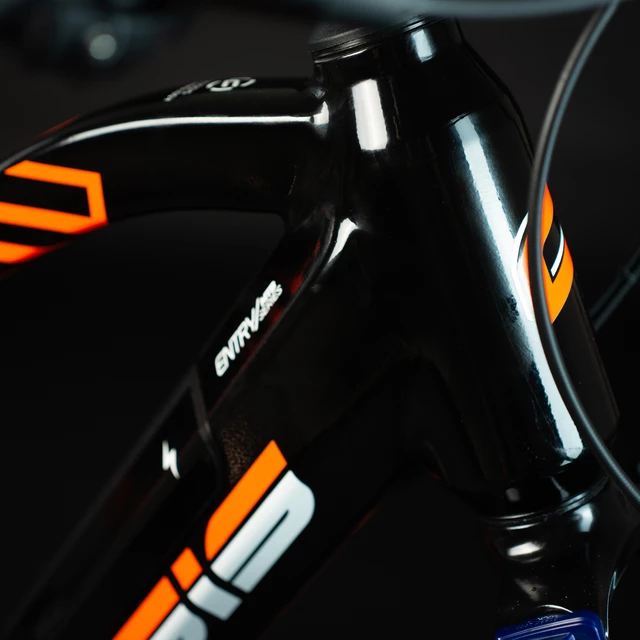

Alu 6061 (18“, 20“) |
|
Motor |
BAFANG MAX drive, center, 250W / 500W, 80 Nm |
|
Battery |
Li-ion 36 V/13 Ah (468 Wh), removable – can be charged separately |
|
Charger |
2 A |
|
Distance range |
Up to 115 km |
|
Rear derailleur |
SRAM X4 / SHIMANO Acera RD-M360-L** |
|
Gear shifter |
SRAM X4 / SHIMANO SL-M310** |
|

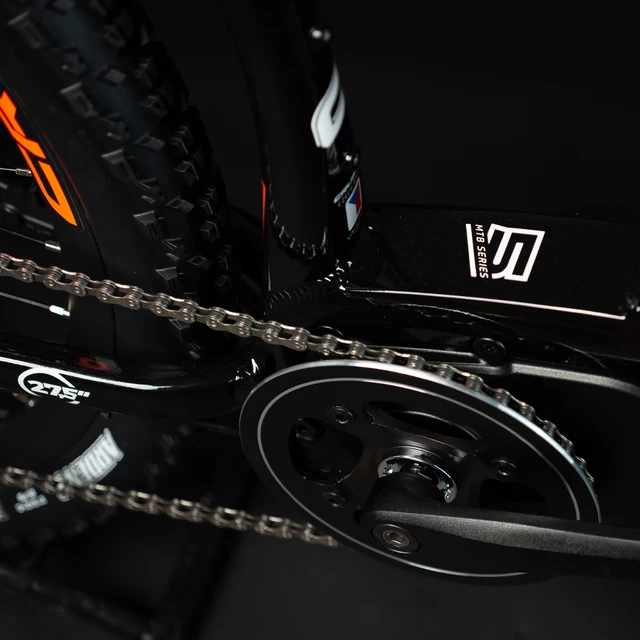

Chain |
KMC X8 |
|
Number of speeds |
1 x 8 |
|
Cassette |
SRAM PG-820 8 speeds / Shimano CS-HG31, 8 speeds** |
|
Fork |
SUNTOUR XCT30 HLO DS 27.5", 100 mm travel, lockout (fork) |
|
Brakes |

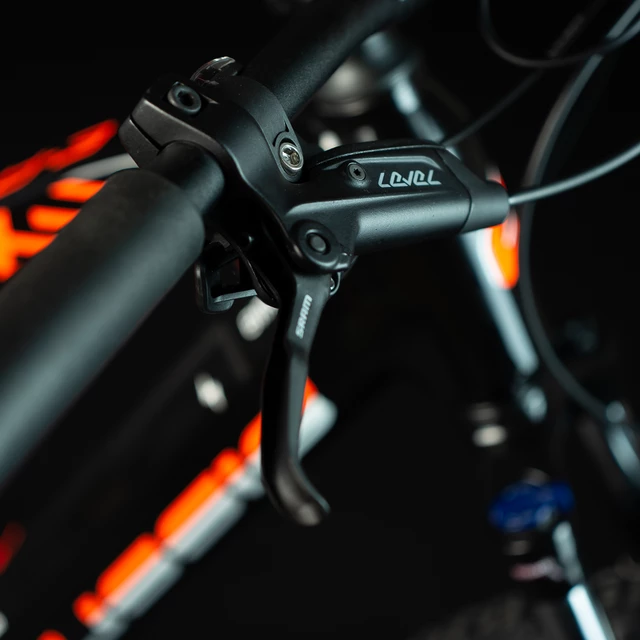

SRAM Level / SHIMANO BR-MT200, rotor 180 mm/160 mm (front/rear)** |
|
Control panel |
LCD panel, 5 assistance modes + walking assistance (black-and-white display) |
|

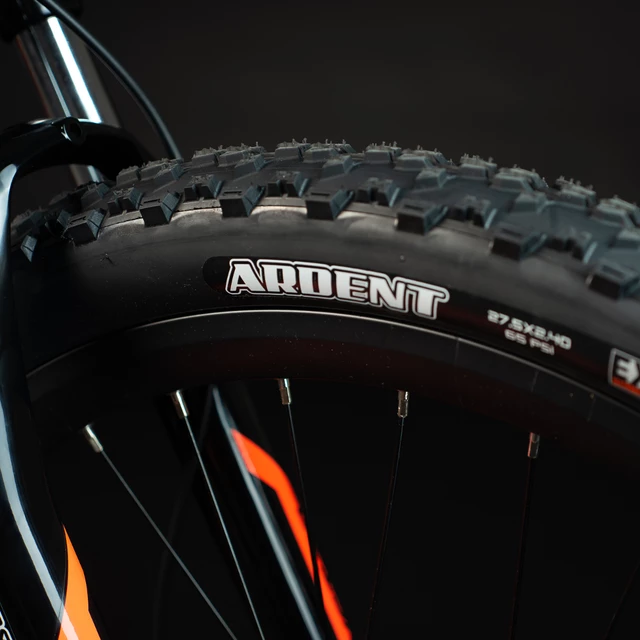

Tires |
MAXXIS Ardent 27.5 x 2.40 |
|
Valve |
AV |
|

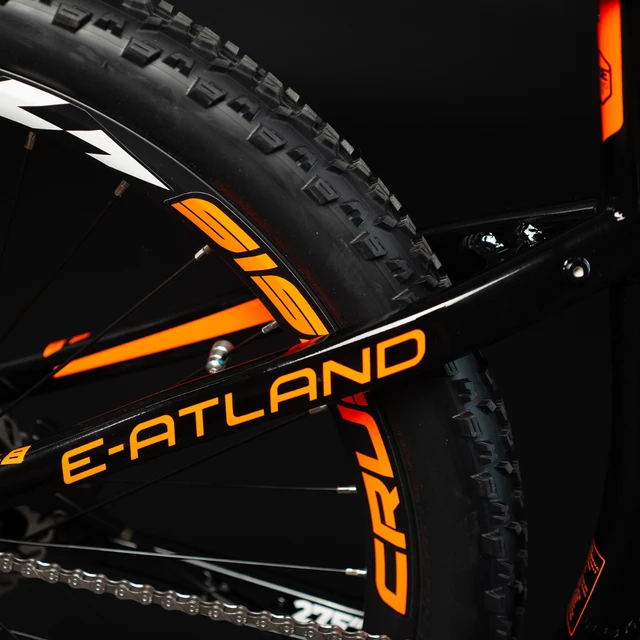

Rims |
Crussis 27.5", double-walled, lined, 32D |
|
Hubs |
CRUSSIS disc, wreath bearing, 32D |
|
Headset |
Semi 11/8 |
|
Stem |
CRUSSIS Al, 60 mm, fixed |
|
Handlebars |

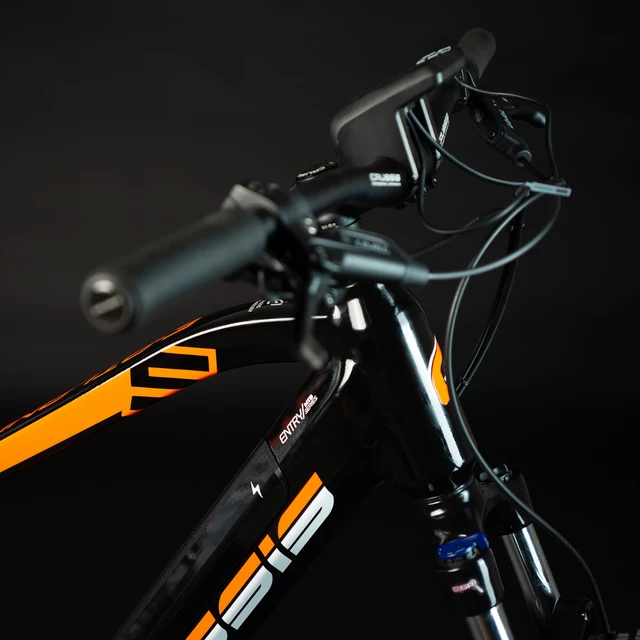

CRUSSIS Al, 760 mm |
|
Grips |
CRUSSIS 100% silicone |
|
Pedals |
WELLGO, plastic w/ reflector |
|
Seatpost |
CRUSSIS w/ lock, 30.4 / 350 mm |
|

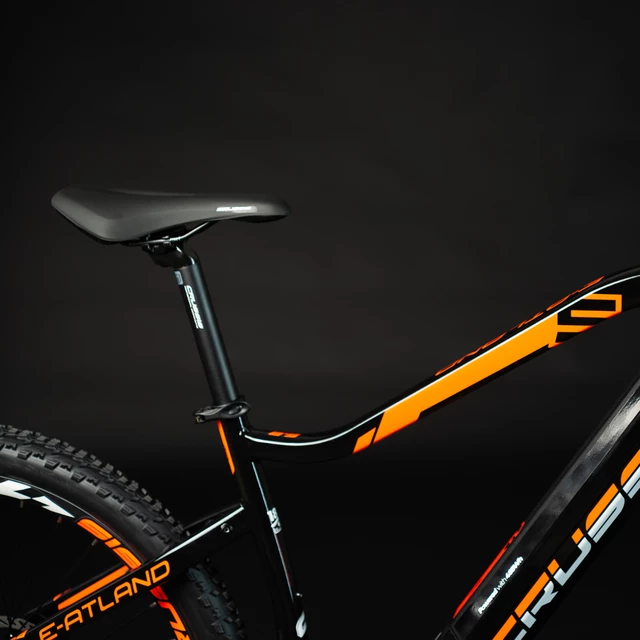

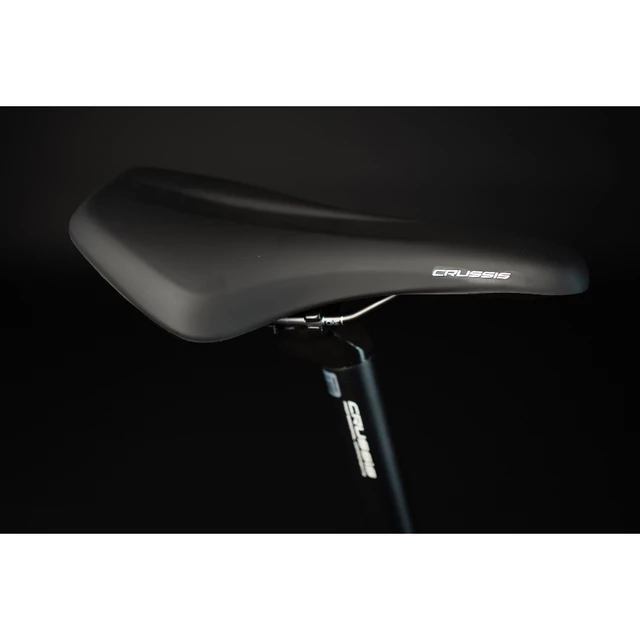

Seat |
Selle ROYAL |
|
Weight |
There is no established standard for weighing e-bikes. Some manufacturers say their bikes are lighter than they actually are. If you want to know how heavy the bike is, you’ll need to have it weighed at the store. |
|
Weight limit |
120 kg |
** For selected 2022 and 2023 models, Crussis uses two different types of mounting at the same performance level - SRAM and Shimano. For operational reasons, it is not possible to determine exactly which fitting brand the individual bike will be equipped with.
CRUSSIS e-bike size chart
| Frame size | Rider height |
| 14″ | 135-155 cm |
| 15″ | 150-165 cm |
| 16″ | 155-170 cm |
| 17″ | 160-175 cm |
| 18″ | 165-180 cm |
| 19″ | 170-185 cm |
| 20″ | 175-190 cm |
| 21″ | 180-195 cm |
| 22″ | 185-200+ cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
