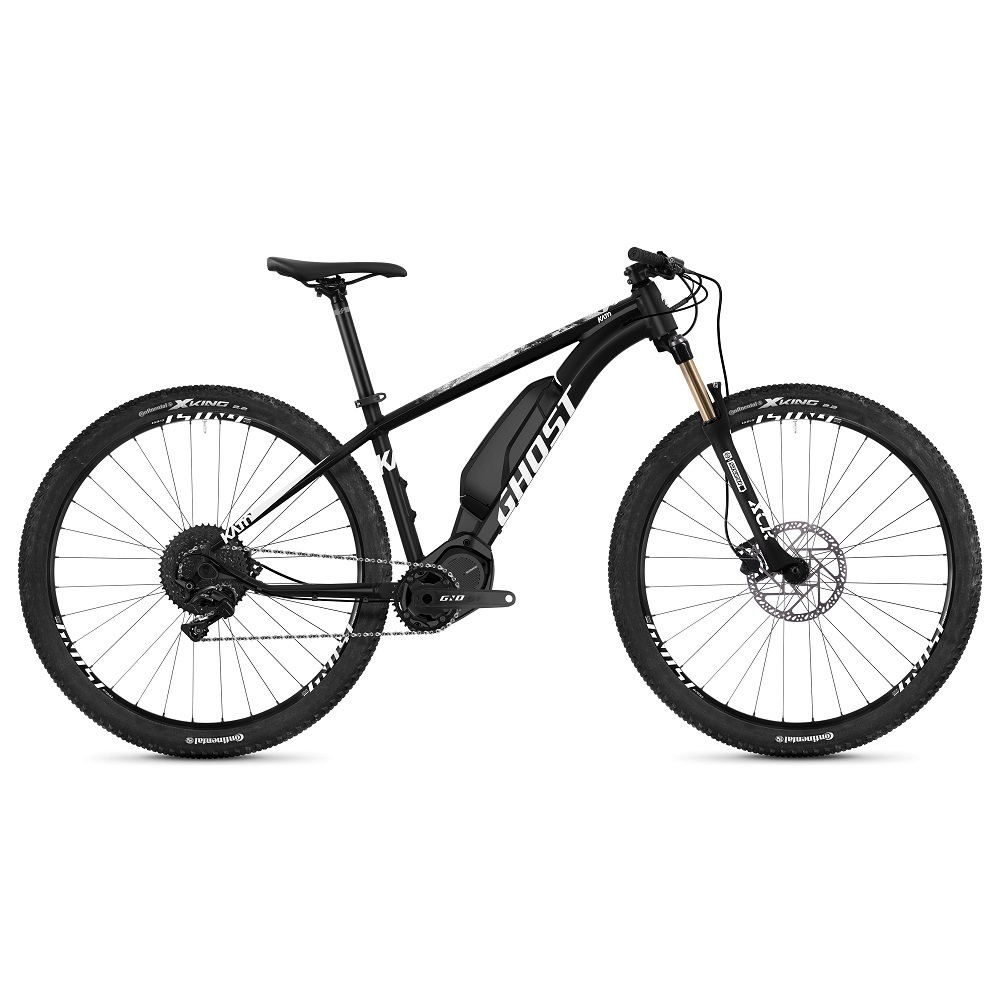

The Mountain E-Bike Ghost Kato S3.9 29” – 2020 is a top-class hardtail bike for which the challenging rides in a hilly terrain will be a piece of cake. The 250W Shimano DU-E8000 center drive with a max speed of 25 km/h is perfect for uphill riding. This drive is not only lightweight and compact, but also extremely powerful. The 13.9Ah Shimano battery allows for a distance range of up to 130km on a single charge. The battery is semi-integrated – since it is on the bottom frame tube, you will not even notice it during the ride. You can follow all the important information such as battery status or distance covered on the easy-to-read display on the handlebars.
The Mountain E-Bike Ghost Kato S3.9 29” – 2020 features top-class components. The large, 29” wheels with top-class Continental tires ensure better stability, terrain passability and lower rolling resistance. The 11-speed Shimano rear derailleur with a lever gear shifter is perfect for hilly terrain while the Suntour air suspension fork with 120mm travel will deal with any bumps. The Shimano hydraulic disc brakes with large discs (180mm in diameter) will come in handy during downhill rides. Bikes of the Kato series are perfect for terrain and hilly rides. They will not disappoint!
Battery storage and maintenance: We recommend storing the battery (or the entire product including the battery) in a shady, dry place at temperatures between 10 ° C and 20 ° C. If you do not intend to use the product for a long time, we recommend charging the battery and recharging it to 100% capacity at least once a month. Follow these guidelines to prevent the battery's nominal capacity from declining rapidly over its lifetime.
Technical description:
Frame |
HybRide KATO AL |
Fork |
SR Suntour XCR 34 LOR DS Air 120 mm |
Motor |
Shimano DU-E8000 250 W, center drive |
Battery |
Shimano BT-E8010 504 Wh / 13.9 Ah |
Distance range |
Up to 130 km |
Display |
Shimano SC-E7000 |
Rear derailleur |
Shimano XT RD-M8000 Shadow Plus 11-S |
Gear shifter |
Shimano SLX SL-M7000 |
Number of speeds |
11 |
Cassette |
Sunrace CSMS8 11-46 |
Cranks |
Miranda Delta 38 T |
Brakes |
Shimano BR-MT200 2/2 Piston 180 mm |
Tires |
Continental X-King Pure Grip 29x2.2 |
Rims |
Rodi Tryp 622x25 mm 32H |
Hubs |
Formula CL-811 15x110 mm / Formula CL1248 12x148 mm |
Handlebars |
GHOST MTB 740 mm, Rise 25 mm, Diam 31.8 mm |
Stem |
GHOST MTB, Diam 31.8 mm |
Seatpost |
GHOST Light DC 1 31.6 mm |
Seat |
Velo VL-1353 |
Ghost bike size chart
Frame size | Recommended user height |
---|---|
XXS | 135-150 cm |
XS | 145-160 cm |
S | 155-170 cm |
M | 165-180 cm |
L | 175-190 cm |
XL | 185-200 cm |
Warning: The factory setting for maximum speed is 25 km/h to meet the European standard for e-bikes. However, the setting can be manually changed to a higher speed limit. Bear in mind that in such a case the e-bike no longer meets the required standards and cannot be used on public roads!
Note: The expected max. travel distance depends on various factors, such as the amount of electric assistance, user weight, terrain, wind and the inflation pressure, pattern and temperature of the tires. All stated travel distances are valid under optimal conditions, meaning even terrain with no wind, temperature of 20°C, extremely narrow tires with no profile and user weight under 70 kg.
Motor | (central drive), Shimano DU-E8000 |
---|---|
Battery | Shimano BT-E8010 504 Wh (13,9 Ah) |
Wheel size | 29 |
Number of speeds | 11 |
Range | 130 km |
Motor output | 250 W |
Display | Shimano SC-E7000 |
Frame | HybRide KATO AL |
Frame material | Aluminium |
Brakes | Disc |
Fork | SR Suntour XCR 34 LOR DS Air 120 mm |
Drive | Central |
Suspension fork | yes |
Rear Brake | Shimano BR-MT200 2/2 Piston 180 mm |
Front Brake | Shimano BR-MT200 2/2 Piston 180 mm |
Rear hub | Formula CL1248 12x148 mm |
Front Hub | Formula CL-811 15x110 mm |
Rear tire | Continental X-King Pure Grip 29x2.2 |
Front Tire | Continental X-King Pure Grip 29x2.2 |
Gear shifting | Shimano SLX SL-M7000 |
Gear shifting type | lever |
Rear Derailleur | Shimano Deore XT RD-M8000 Shadow Plus |
Cassette | Sunrace CSMS8 11-46 |
Front Rim | Rodi Tryp 622x25 mm 32H |
Rear rim | Rodi Tryp 622x25 mm 32H |
Crankset | Miranda Delta 38 T |
Handlebar grip | GHOST MTB 740 mm, Rise 25 mm, Diam 31.8 mm |
Handlebar stem | GHOST MTB 31.8 mm |
Saddle | GHOST VL 1353 |
Seat post | GHOST light SP DC 1 31.6 mm |
Type of e-bike | MTB |
Drive | Shimano |
Year | 2020 |
